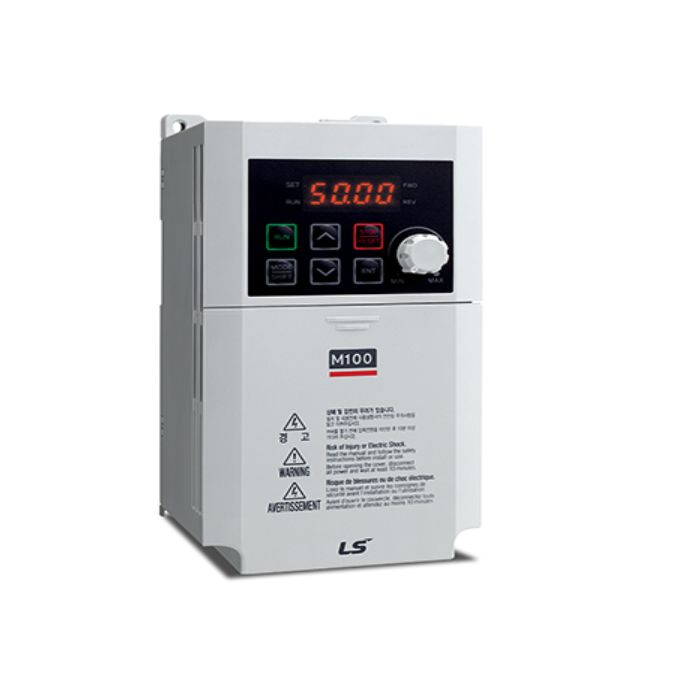

0.1kW 1-Phase 220VAC (Advanced I/O) RS-485 Comms Pot Din-Rail Mount C2
Description:
- 230V/1-phase inverter drive for small three-phase motors, ranging in power from 100W to 2.2KW.
- Ideal for small fans, pumps, and geared motors, they come with basic DC injection brakes and built-in motor overload protection.
- UL 61800-5-1 Design; Enhanced Isolation Circuit; Easy Connection with RJ45 Port (Modbus, Smart Copier, Remote Keypad, Drive View 7); Integrated C2 EMC Filter User-Friendly Design; DIN-rail mountable; Side-by-side installation; Integrated DB Unit: ≥1.5kW; Advanced I/O Type Modbus
Specifications:
- 200W/1.4A; Heavy Duty-150% Overload/1 min
- Voltage input: 1 Phase 200 - 240V
- Voltage output: 3 Phase 200 - 240 V
- Rated Output Current: 4.2 A
- Output Frequency: 0 – 400 Hz
- Operating temperature: -10 °C to +50 °
- LED Keypad
- DIN-rail
- Protection class: IP20
- Dimensions: 85 x 145 x 100 mm [W x H x D]
- Built-in EMC filter (C2 Class)
- Advanced I/O - control terminal I/O 5mm pitch.
- 5 DIGITAL INPUTS
- 2 ANALOGUE INPUTS (V/I)
- 2 RELAY OUTPUTS
- RS485 -MODBUS
| Brand | LS Electric |
|---|
