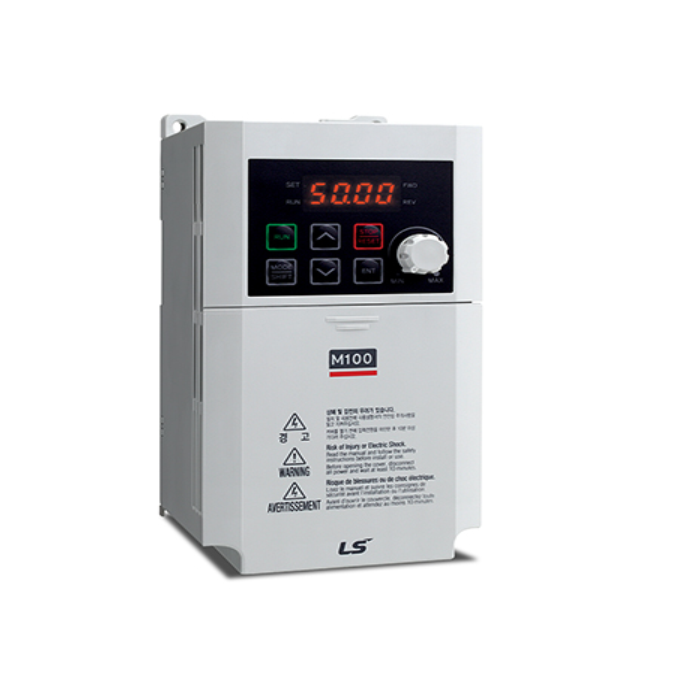

0.2kW 1-Phase 220VAC (Advanced I/O) RS-485 Comms Pot Din-Rail Mount C2
Features:
- M100 Micro Drive Series
- Built-in C2 EMC Filter
- User-Friendly Design
- DIN-rail mountable
- Side-by-side installation
- Easy connection with RJ45 port
- Modbus / Smart copier / Remote keypad / DriveView 7
- New UL 61800-5-1 Design
- Enhanced isolation circuit
- Built-in DB Unit: ≥1.5kW
- Modbus in Advanced I/O Type
Specifications:
- 200W/1.4A; Heavy Duty-150% Overload/1 min
- 1 Phase Input 200~240V
- 3 Phase Output
- LED Keypad
- DIN-rail
- IP20
- Dimensions: 85 x 145 x 100 mm [W x H x D]
- Built-in EMC filter (C2 Class)
- Advanced I/O - control terminal I/O 5mm pitch.
- 5 DIGITAL INPUTS
- 2 ANALOGUE INPUTS (V/I)
- 2 RELAY OUTPUTS
- RS485 -MODBUS
- Categories: LS Starvert Series Variable Frequency Drives
- M100, 220 V AC 1-Phase, General Purpose, Advanced I/O Type, EMC Class-C2
| Brand | LS Electric |
|---|
