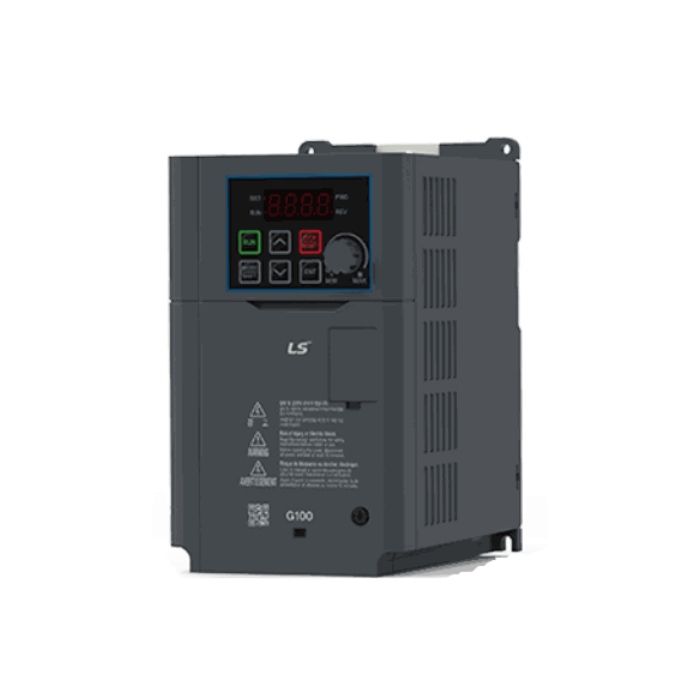

0.4kW 3 Ph 380V Heavy Duty Built-in C3 EMC filter LED Keypad
G100 Series:
- The G100 inverter supports both PNP (Source) and NPN (Sink) modes for sequence
- Inputs at the terminal
- Built-in Potentiometer
- Remote Keypad
- Smart Copier
- Fieldbus Options
- Built-in 2 Relay
- DIN rail Mount (Below 4kW)
- Fan Replacement
- I/O Terminal (5mm)
- Operation Group
Specifications:
- Inverter output voltage: 3 x 400V AC
- Voltage between phases (for 3 phase system): 3 x 380...480V AC
- Voltage output: 0...12V DC
- Mounting: DIN rail mounting or wall mounting
- Number of inputs: 5
- Number of analog inputs: 1
- Operating temperature: -10…50°C
- Output frequency: 0…400Hz.
- Current rating: 1.5A
- Dual rating: 0.4kW/1.3A Heavy Duty-150% Overload/1 min 0.75kW/2.0A Normal Duty-120% Overload/1 min
- 3 Phase Input 3 Phase Output
- 380-480 Volts
- Control modes: U/f slip compensation sensor less vector IM.
- Output frequency: 0.1 - 400 Hz - U/f 0-120 Hz - IM Sensor less.
- LED Keypad
- Built-in EMC filter(C3)- Industrial
- BRAKE CHOPER BUILD IN
- PNP / NPN logic
- Standard IO - control terminal I/O 5mm pitch
- Dual motor parameters KEB function
- PID controller
- RS 485 interface-LS Bus / Modbus RTU
- Drive View Software
Brand | LS Electric |
---|
