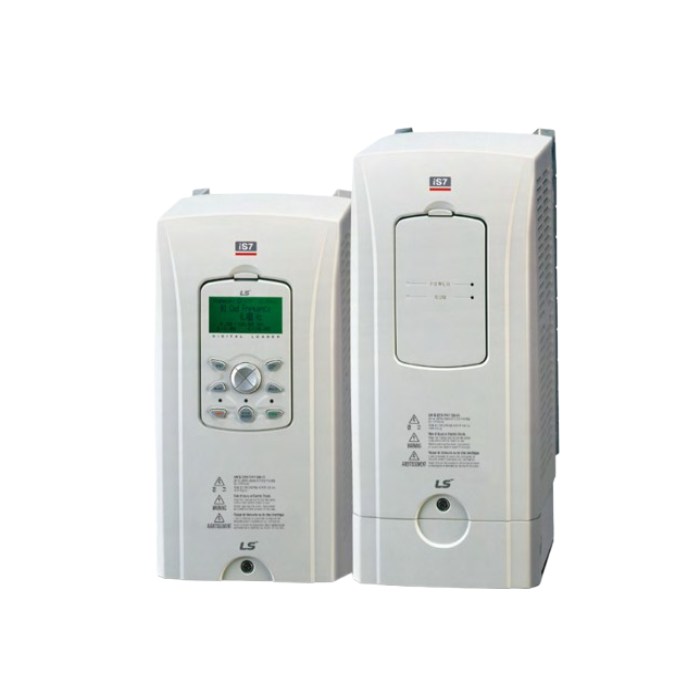

1.5kW 3-Ph 380VAC Heavy Duty DBU RS-485 (Optional Closed-Loop Vector)
iS7 Series:
- With its improved V/F control, V/F PG slip compensation, and sensor-less vector control, the iS7 produces more powerful performance.
- The iS7 places a strong emphasis on its user-friendly interface and environmentally friendly features, which include support for macro groups and wide graphic LCD keypad users, as well as electro-thermal motor protection and input/output phase loss protection.
- A speed-precision-driven vector algorithm and competitive and effective low-speed torque control are features of iS7 technology.
- Range of speed control: 100:1.
- Very low torque control capability: actual torque of 150% at 0.1 Hz.
- Maximum torque is controllable within the range of restoration.
Specifications:
- Supply voltage: 3 Phase 380VAC.
- Output Type: Analogue DC 0~10V.
- Output Type: Analogue DC 4~20mA.
- Output Type: Digital Programmable Relay (NO).
- Output Type: Digital Programmable Relay (NO/NC).
- Output Type: Digital Programmable Transistor.
- Other Feature: Thermistor Input.
- Display Type: LCD.
- Input Type: 8 Pieces Prog. PNP/NPN.
- Input Type: Analogue DC ±10V.
- Input Type: Analogue DC 4~20mA /0~20mA.
- Strength: 1.5 kW.
- Input Phase: 3.
- Amps (Constant Torque Rating): 4 A.
- Amps (Variable Torque Rating): 6 A.
- Mounting: DIN rail mounting.
- Input Range Voltage (AC): 380-480 VAC.
| SKU | SV0015IS7-4NO |
|---|---|
| Brand | LS Electric |
