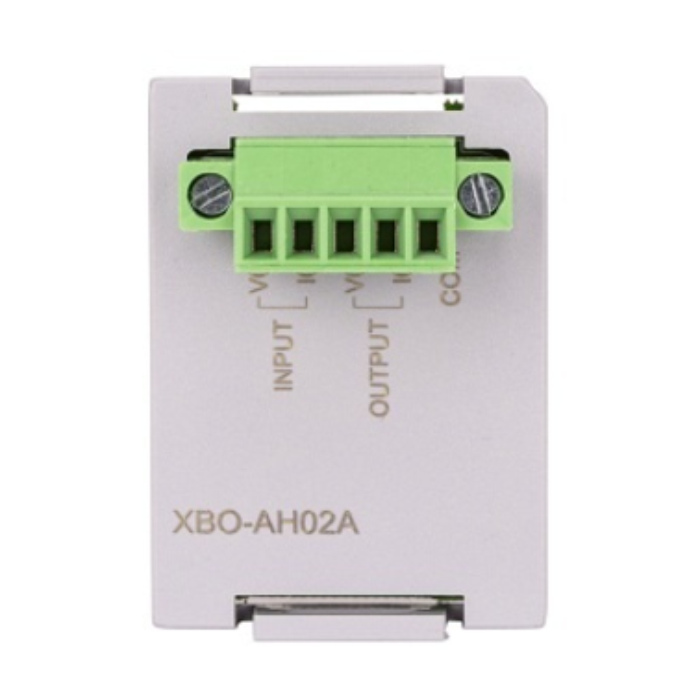

Analog Option Module, Voltage/Current, Input 1ch / Voltage/Current, Output 1ch
Description:
- For usage with programmable logic controllers (PLCs), the LS Electrical Analog Option Module, XBO-AH02A, is a dependable and adaptable module.
- It can handle input ranges of 0-10VDC and 0-20mA and output ranges of 0-10VDC and 0-20mA. It has one analogue input and one analogue output channel.
Specifications:
- Number of channels: 1
- Voltage Range: DC 0 ~ 10V
- Current Range: DC 4 ~ 20mA, DC 0 ~ 20mA
- Max. conversion speed: 1ms/channel + scan time
- Output Specification
- Number of channels: 1
- Voltage Range: DC 0 ~ 10V
- Current Range: DC 4 ~ 20mA, DC 0 ~ 20mA
- I/O terminal: 5-point terminal block
- I/O occupation point: Fixed type 64 points
- Supply power: Internal DC5V
- Consumption current: 150㎃
| Brand | LS Electric |
|---|
