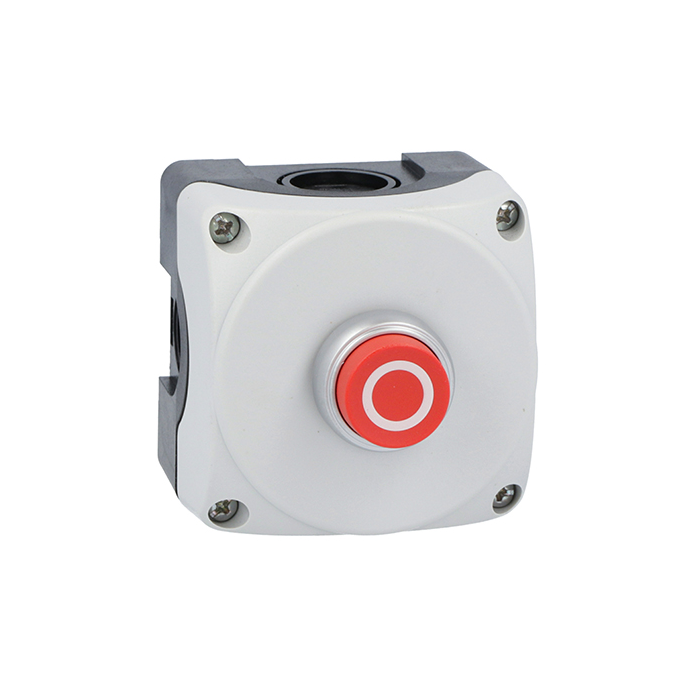

1 HOLE STATION WITH PUSHBUTTON (Extended pushbutton)
Complete pushbutton control stations from the Platinum series:
- Pushbuttons with one hole.
- High level of protection: IP66, IP67, IP69K.
- A new look with an integrated actuator anti-rotation feature.
- Knock-outs for M16 or M20/25 cable glands on the base and both sides.
- Simple wiring with base and cover contact identification on the interior.
- The screw terminals on contact blocks and LED bulb holders are positioned at the base, pointing forward.
Specifications:
- SERIES: Platinum series pushbutton stations.
- MOUNTING (⌀): 22 mm
- NUMBER OF HOLES: 1
- COVER: Grey
- SYMBOL: O
- CONTACT: 1 x NC
- BUTTON: Red
- DESCRIPTION: Extended pushbutton.
- INDEX PROTECTION IP: IP66,IP67,IP69K.
- DIMENSIONS (MM): (H) 72 x (W) 72 (D) 56.
Brand | Lovato electric |
---|
