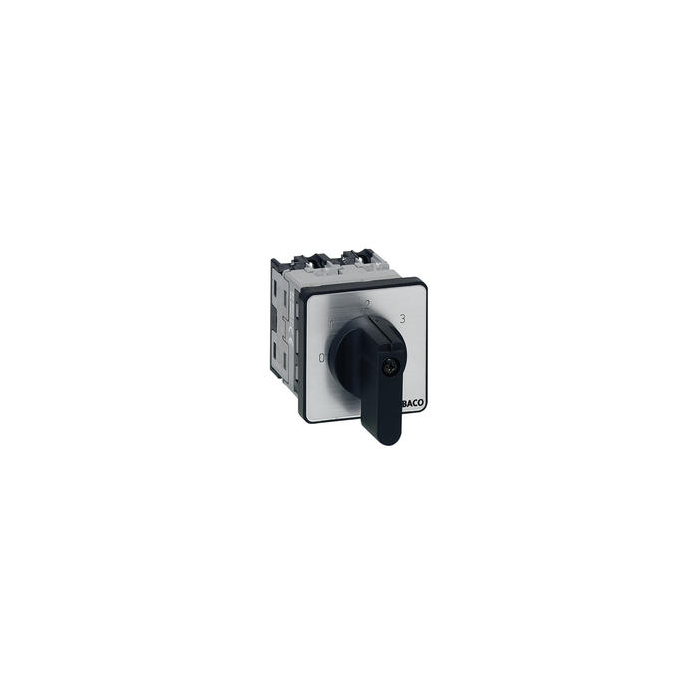

1 POLE 16A O-I-II-III 3 CONTACT SWITCH
The PR ONE cam switch line
Necessary components:
- 45-degree switchover angle.
- 3-way switches, including an ON/OFF button.
- Forced communication to open.
- Reaches 690V in order to meet load break specifications.
- IP40 front protection and IP20 back terminal (protection for fingers).
Specifications:
- SERIES: PR ONE.
- CONTACT RATING AC-21: 16A.
- CONTACT RATING AC-23: 7.5 KW.
- NUMBER OF POLES: 1 pole.
- DESCRIPTION: 3-way rotary cam switch.
- ACTION: O-I-2-3.
- OPERATING TEMPERATURE: -20°C to 70°C.
- FRONT BEZEL: 48 mm - engraved aluminium plate with black handle.
- STANDARDS OF COMFORMITY: IEC EN 60947-1, 60947-3, UL508, UL-CSA.
| Brand | BACO |
|---|
