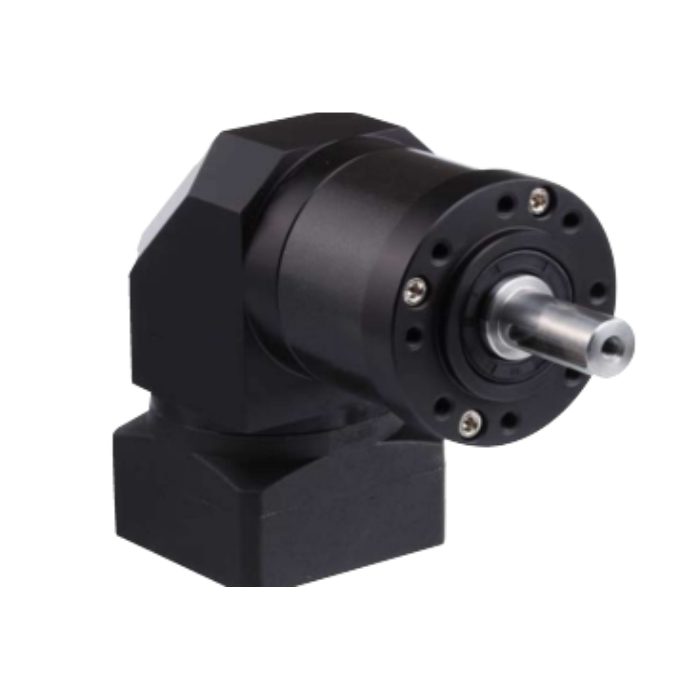

MAO Series 1 Stage 90-deg. G/Box Input 90mm Flange 19 - 24mm shaft
MAO Series Specifications:
- Output flange in a circle.
- Standard right-angle gearbox type.
- Best-in-class opposition.
- High torque output.
- Low volume of noise.
- Enhanced efficiency.
- Free of maintenance.
- Motor pinion balance.
- There are gear ratios ranging from 3:1 to 200:1.
- The lifespan can be extended without changing the lubricant.
Planetary Gearbox Series:
- Low noise level.
- Best-in-class backlash.
- High output torque.
- High efficiency.
- Variable Gear Ratios: Straight type: 3: 1 ~ 100: 1 Angle type: 3: 1 ~ 200: 1.
- Applications: Packaging machines Logistics machines Semiconductor machines FPD/LCD machines.
- Spig 70mm PCD 90mm Output 94mm Round Fl. 20mm Shaft SP. 60mm PCD = 70mm 1 Stage: Ratio 3 - 10:1 (Specify Ratio).
| Brand | LS Electric |
|---|
