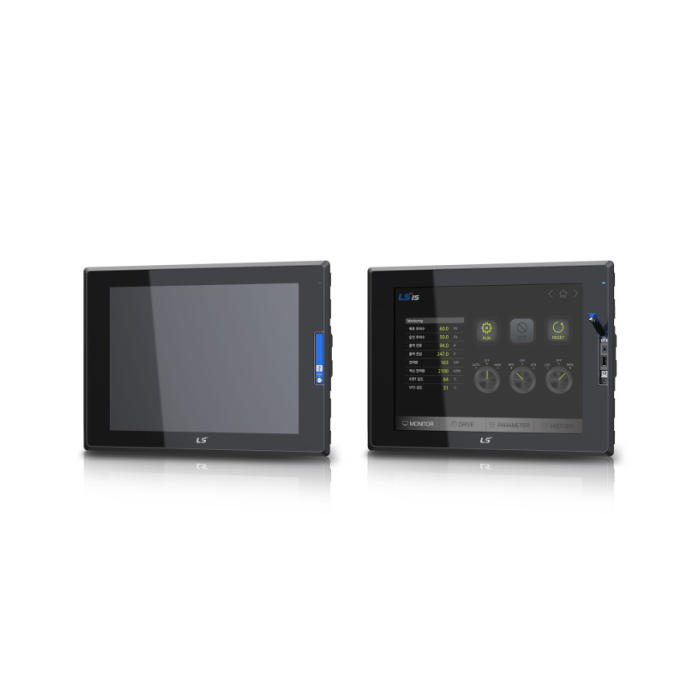

XGT Touch Panel 10.4" TFT 16-M colours SVGA, AC100-240V powered based on Win
Description:
- The iXP series is carried over into this next generation of high-performance HMI, which optimizes performance.
- High-speed processing and communication via the capacitive touch method are made possible by the CPU's twin core.
- It is feasible to operate easily.
- Tempered glass and aluminium bodies were used to minimize equipment issues and noise on industrial sites.
Specifications:
- Display type: TFT colour LCD.
- Screen size: 10.4.”
- Display resolution: 1, 024 x 768.
- Color indication: 24-bit color (16.7M colors)
- Blacklight: LED method, automatic on/Off support.
- Blacklight lifetime: 40, 000 hour
- Touch panel: Capacitive touch.
- Audio output: Magnetic buzzer (85Db)
- Processor: 1GHz, Dual core
- Memory: flash: 1GB, operating RAM: 1GB, Backup RAM: 1Mbyte.
- Video output: 1Xhdmi
- Multi-language.
- Animation: gif format
- Protection standard: IP66, conform to the UL type 4x, NEMA 4x standard.
- Dimensions: 271 x 212 x 60
- Panel cut (mm): 259.0 x 201.0.
- Power consumption (W): 25
Features:
- Ambient temperature: 0°C~+50°C
- Storage temperature: -20°C ~+60°C
- Ambient humidity: 10~85% RH, without dew condensation
- Storage humidity: 10~85% RH, without dew condensation
- Operating ambience: free from corrosive gas and excessive dust
- Altitude: 2, 000m (6562 ft) or below
- Pollution degree: 2 or under
- Cooling method: natural air-cooling
| Brand | LS Electric |
|---|
