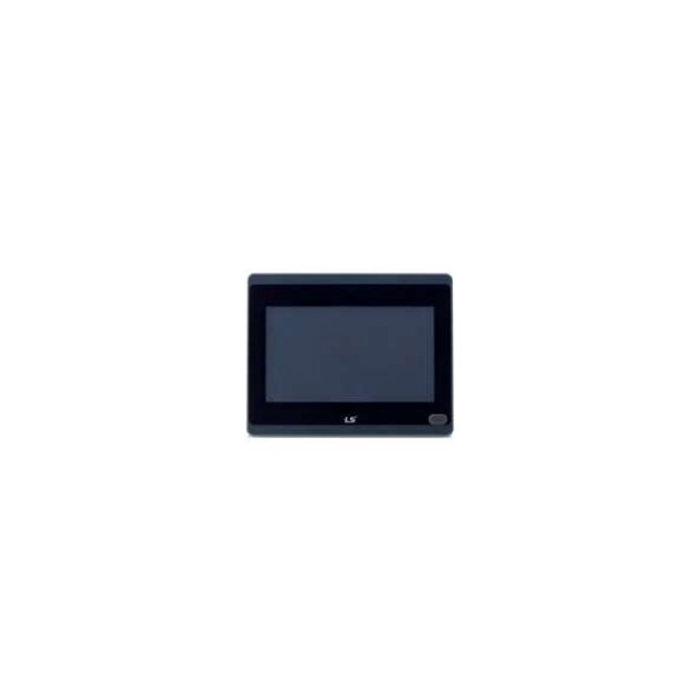

10" TFT LCD 24-bit Color 24V DC 1x Ethernet RS485/422

ZAR 0.00 ZAR 0.00
Out of stock
SKU
eXP2-1000D-EX CERTI

Pricing available on request

Description:

  • There is a vertical mounting option available.
  • In XP-Builder, the setting is [COMMON]- [Project Property Setting].
  • The XGT Panel may show PDF files. If an alarm sounds, the troubleshooting information for the alert can be seen on location as a PDF file.
  • A PDF viewer object can be used to view PDF files on an FTP server.
  • An object known as an IFTP client can establish a connection with an FTP server, show the list of files and folders on the server, and download the desired file.
  • With VNC Viewer, a PC or HMI can be remotely monitored.
  • Via XP-Manager, download the VNC server to the HMI.
  • Set up a PC with a universal VNC server. (Real VNC, Ultra VNC, etc.)
  • The 'VNC Viewer' item should be added to the project screen.
  • Interfaces for Human Machines (HMI): LS eXP2 HMI, 24V DC, WinCE 7.0, Portrait/Landscape, Buzzer (Models 0=Stand, 1=Adv, and 2=Basic).

Specifications:

  • Display type: TFT colour LED.
  • Screen size: 25.9 cm (10.1”).
  • Display Resolution: 1024 x 600 Pixels.
  • Colour Indication: 24Bit Colour.
  • Blacklight: LED type, supports Blacklight auto- off function.
  • Blacklight Duration: 30000 Hours.
  • Touch panel: 4-Wire Resistive, analogue.
  • Audio output: Magnetic buzzer (85dB).
  • Process: 800MHz.
  • Drawing memory: 64 MB.
  • Operating RAM: 512 MB.
  • Backup RAM: 128 KB.
  • Battery life: 3years.
  • Ethernet: 1 Channel, IEEE802.1a,10Base-T/100Base-TX.
  • Certifications: CE, UL (cUL), UL Type 4X, KC.
  • Protection Standard: IP65.
  • Multi language.
  • Animation: GIF format is available.
  • Dimensions: 276 x 218 x 35.1 mm.
  • Panel cut: 260 x 202 mm.
  • Rated Voltage: DC24V.
  • Weight (Kg): 1.0.
More Information
SKU eXP2-1000D-EX CERTI
Brand LS Electric
