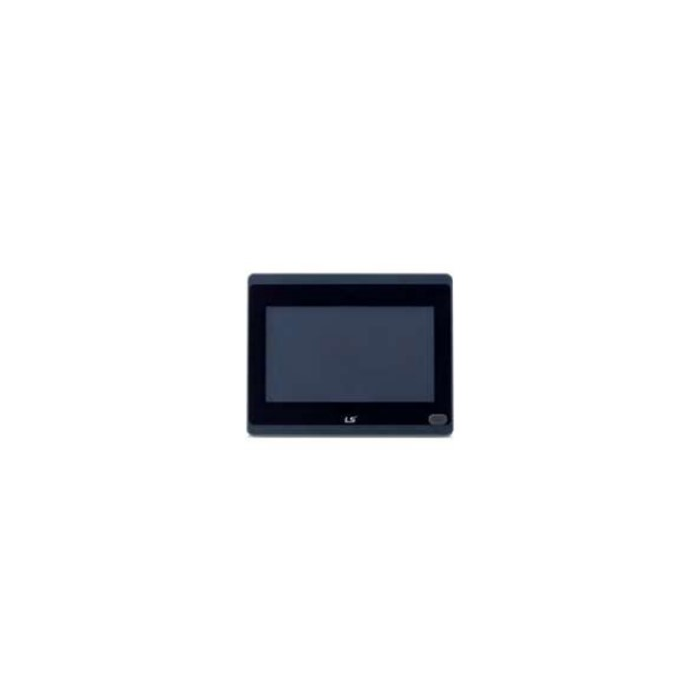

10" TFT LCD 24bit Color 24V DC 1x Ethernet SD RS485/422

ZAR 18,198.00
Out of stock
SKU
eXP2-1001D

Description:

  • There is a vertical mounting option available.
  • In XP-Builder, the setting is [COMMON]- [Project Property Setting].
  • The XGT Panel may show PDF files.
  • If an alarm sounds, the troubleshooting information for the alert can be seen on location as a PDF file.
  • A PDF viewer object can be used to view PDF files on an FTP server.
  • An object known as an IFTP client is able to establish a connection with an FTP server, show the list of files and folders on the server, and download the desired file.
  • With VNC Viewer, a PC or HMI can be remotely monitored.
  • Via XP-Manager, download the VNC server to the HMI.
  • Set up a PC with a universal VNC server. (Real VNC, Ultra VNC, etc.)
  • The 'VNC Viewer' item should be added to the project screen.
  • Interfaces for Human Machines (HMI): LS eXP2 HMI, 24V DC, WinCE 7.0, Portrait/Landscape, Buzzer (Models 0=Stand, 1=Adv, and 2=Basic)

Specifications:

  • Display type: TFT colour LED.
  • Screen size: 25.9 cm (10.1”)
  • Display Resolution: 1024 x 600 Pixels.
  • Colour Indication: 24Bit Colour.
  • Blacklight: LED type, supports Blacklight auto- off function.
  • Blacklight Duration: 30000 Hours
  • Touch panel: 4-Wire Resistive, analogue.
  • Audio output: Magnetic buzzer (85dB)
  • Process: 800MHz
  • Drawing memory: 64 MB
  • Operating RAM: 512 MB
  • Backup RAM: 128 KB
  • Battery life: 3years
  • Micro SD card: 1 Channel SDHC Class 10
  • Ethernet: 1 Channel, IEEE802.1a,10Base-T/100Base-TX
  • Certifications: CE, UL (cUL), UL Type 4X, KC
  • Protection Standard: IP65
  • Multi language
  • Animation: GIF format is available
  • Dimensions: 276 x 218 x 35.1 mm
  • Panel cut: 260 x 202 mm.
  • Rated Voltage: DC24V
  • Weight (Kg): 1.0
More Information
Brand LS Electric
