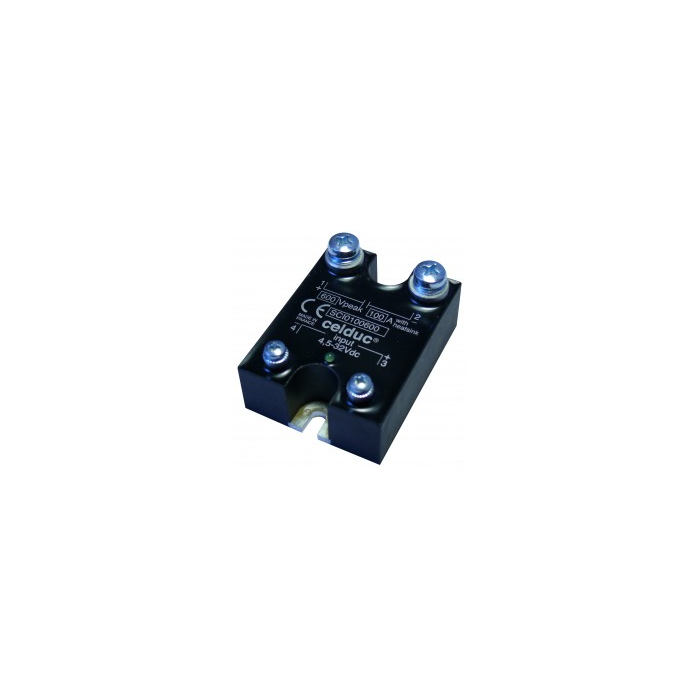

100A 0-600VDC SOLID STATE RELAY
DC output solid state relay:
- SCI series - Integrated reverse diode
- IGBT technology - for high DC voltage applications
- SERIES: SCI series
- SWITCHING CURRENT: 100A
- SWITCHING VOLTAGE: 0 - 600 VDC
- CONTROL VOLTAGE: 4.5 - 32 VDC
- INDEX PROTECTION IP: IP20
- DIMENSIONS (MM): (H) 58.5 x (W) 45 x (D) 27
SCI series - Integrated reverse diode:
- Control voltage range: 4.5-32VDC.
- Max transient peak Voltage: 600V
- Advised max. DC Mains peak voltage: Depends on protection clamping voltage.
- Max. Load Current with heatsink: 100ADC.
- DC Mains voltage range: Depends on protection clamping voltage.
- Load current range: 0 to 100A with heatsink.
- In & case / Out Insulation: 4kV
- Connections: M3 and M5 round tabs
- Control current: 35mADC.
- Control current consumption: 25 – 42mADC.
- Releasing control voltage: 1VDC
- Max. reverse control voltage: 32VDC
- Input impedance: Current limitation.
- Display: Green LED (indicates the power element is controlled)
- Housing: UL94V0
- Mounting: 2 screws (M4x12mm)
- Protection level: IP00
- CE marking
- UL, cULUS
| Brand | Celduc relais |
|---|
