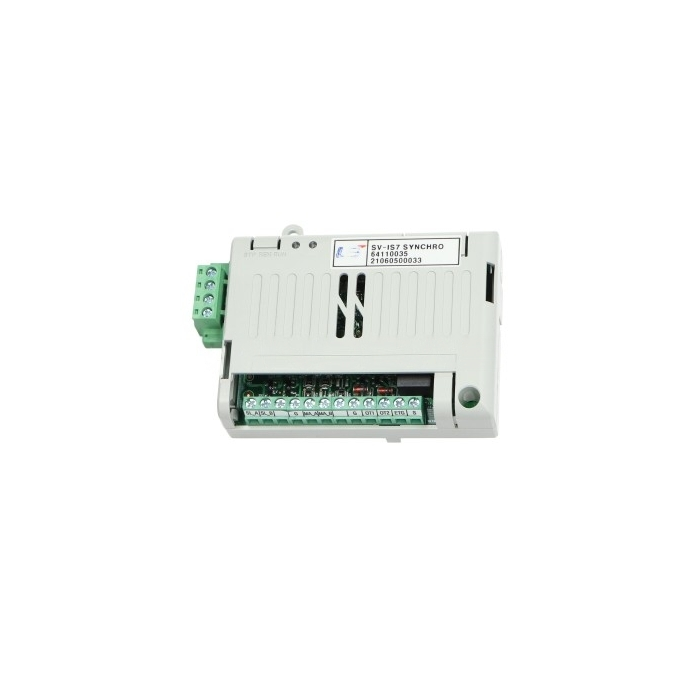

100kHz Speed/Positioning card Closed-Loop Synchronization operation
iS7 Series:
- With its improved V/F control, V/F PG slip compensation, and sensor-less vector control, the iS7 produces more potent performance.
- Focusing on an intuitive user interface and environmentally friendly features, the iS7 has a broad graphic LCD keypad with support for both user and macro groups, as well as an electro-thermal function for motor protection and input/output phase loss protection.
- A speed-precision-driven vector algorithm and a competitive and powerful low-speed torque control are features of iS7 technology.
- 100:1 speed control range.
- Very low torque control capability: actual torque of 150% at 0.1 Hz.
- Maximum torque control capacity inside the range of restoration.
Specifications:
- Closed loop control.
- 100kHz Max. input frequency.
- Position/Speed synchronization.
- Synchronization holds (only slave).
- 15 slaves per master (3 serial - 5 parallel max).
- Open collector output: 26V/100mA (2 points).
- Synchronization option card is only available for synchronization version product.
SKU | SV-IS7-SYNCHRO |
---|---|
Brand | LS Electric |
