100W Servo 230V Ethercat Enhanced Enc./Resolver Cia402 Profile

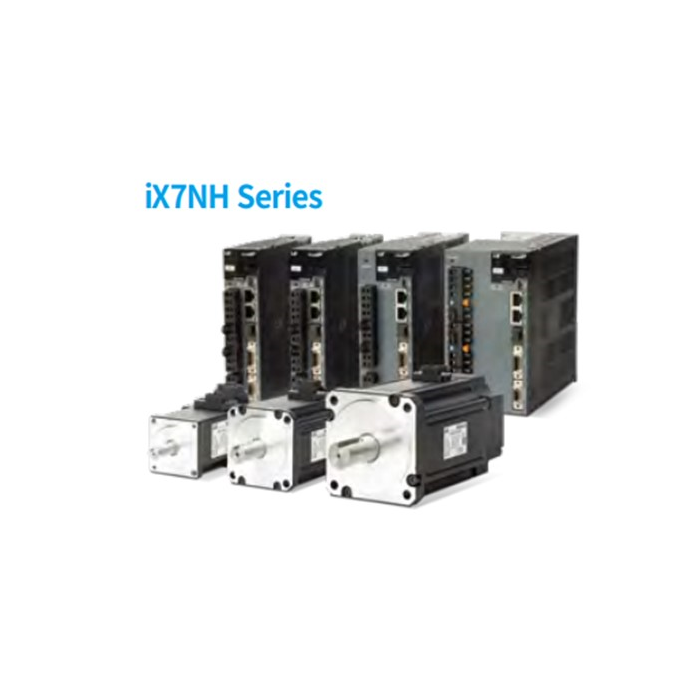

iX7NH Series:
- Compact and practical.
- Highly efficient heat dissipation: 100W ~ 1kW drive; optimized installation space.
- Lowered space by 16% and lowered drive depth for 100W and 200W drives by designing and applying a tiny heatsink, measuring 172.5 → 145.2 mm.
- Greater Variety in Encoders and Features Supported.
- BiSS Quadrature Tamagawa Sinusoidal, SSI Nikon, and Panasonic EnDat 2.2 (Optional).
- Encoders are supported for temperature monitoring.
- Allowed to store four maximum channels, including the alarm code and the time and date of the alarm occurrence.
- Improved On-the-Go (OTG) functionality for USB: Firmware update for parameter alarm history backup.
- More Variety in Faster Communication Methods Provided.
- Fieldbus: Modbus TCP and Ether CAT.
- Minimum cycle time for communication: 0.125 Ms.
- Web server functionality is built in.
Specifications:
- 100W Servo 230V
- Ether Cat
- Enhanced Encoder/Resolver
- Cia402 Profile
- Main input power: 1-phase AC100~120(V), 1-phase AC200~240(V), 3-phase AC200~240(V), (-15~+10%), 50~60(Hz).
- Control input power: 1-phase AC100~120(V), 1-phase AC200~240(V), (-15~+10%), 50~60(Hz).
- Rated current: 1.4A
- Peak current: 4.9A
- Encoder type: Quadrature (incremental), BiSS-B, BiSS-C (absolute, incremental), Tamagawa serial (absolute, incremental), EnDat 2.2, Sinusoidal, Analog Hall, SSI, Nikon, Panasonic.
- Speed control range: Max. 1:5000.
- Encoder decimation output: Differential line driver 3 channels AO, /AO, BO, /BO, ZO, /ZO up to 6.5 (Mpps) on 4x interpolation.
- Analog input: Input voltage range: -10~+10(V), Function: Analog torque limit (1 channel, unallocable).
- Analog output: Total 2 channels (Allocable): able to selectively allocate total 25 types of output.
- Safety function: 2 input channels (STO1 and STO2), 1 output channel (EDM).
- Operating temperature: 0~+50°C/ -20~65°C.
- Operating Humidity: under 80% RH/ under 90% RH (noncondensing).
- Environment: keep indoors, avoid corrosive/ flammable gas or liquid.
| Brand | LS Electric |
|---|
