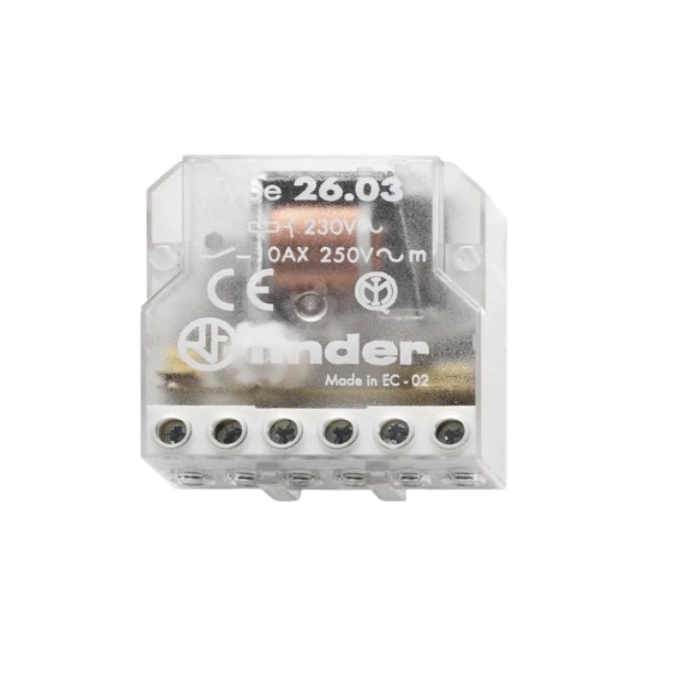

10A 1NO+1NC BASE STEP RELAY 24VAC
Step relays that are modular:
- 26 step relays in series.
- Turn on and off the pulse.
- Installation of the base and chassis.
- Connections using screw terminals.
- AC coil (one-hour maximum pulse duration).
- Separated coils and contact circuits electrically.
Series 26:
- Switch current:10a.
- Number of steps: 2 steps.
- Description: base mounting step relay.
- Contact configuration: 1no+1nc.
- Coil voltage: 24 vac.
- Mounting: base/chassis.
- Dimensions (mm): (h) 46.6 x (w) 45 x (d) 22.
| Brand | Finder |
|---|
