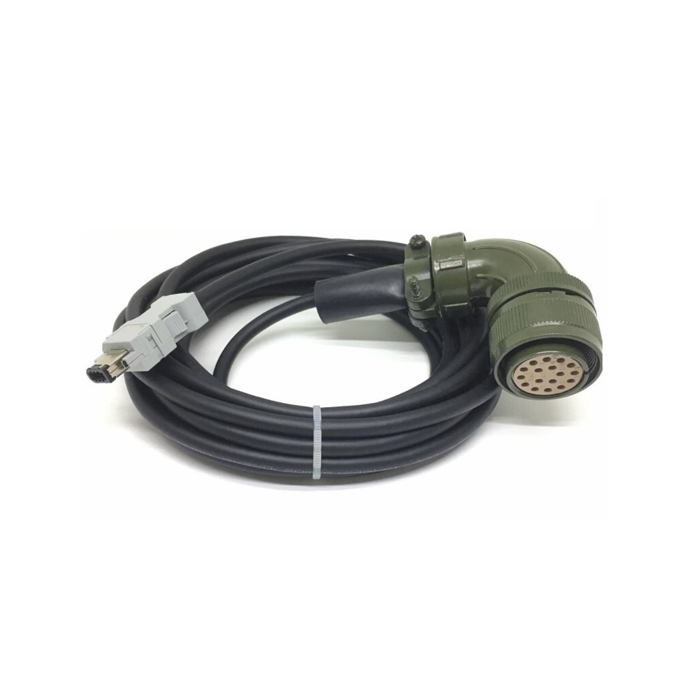

10m 19-Bit M-Turn Serial Enc Cable 130 - 180 Frame APM(C) - FE; FF; FG; HE + FEP; FFP; FGP
Specifications:
- Series: L7 Series 200V.
- Cable type: Encoder cable.
- Non-Moving type.
- Cable length: 10m
- Cables for 130 - 180 Frame F Motors, 19 Bit S-Turn Serial Enc., mil-Spec.
Motor side connector:
- Plug spec: MS3108B20-29S.
Drive side connector (CN2):
- Case spec: 10314-52A0-008 (3M) or SM-14J (Sun tone).
- Connector spec: 10114-3000VE (3M) or SM-14J (Sun tone).
Cable spec:
- 3P x 0.2SQ or 3P x 24AWG
Brand | LS Electric |
---|
