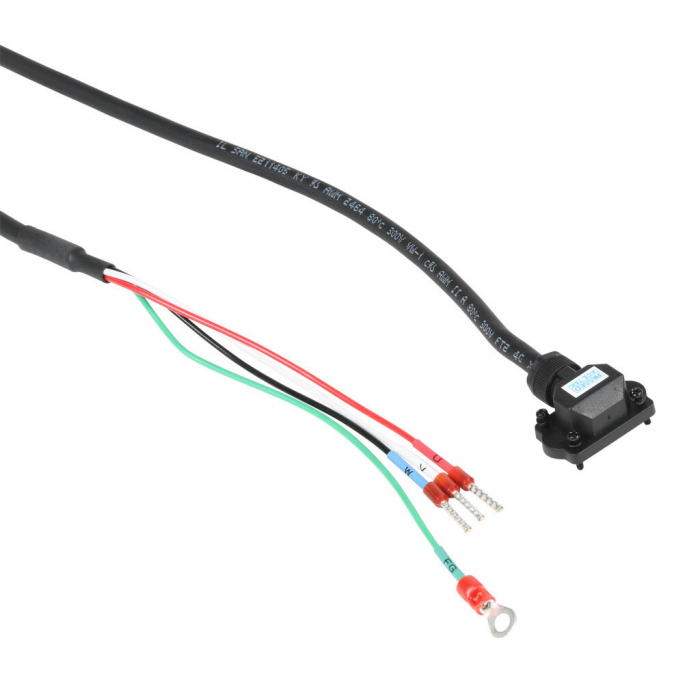

10m Power and Brake Cable 200V APM- FF & FG Motors 180 / 220 Frame Mil-spec Plug

ZAR 0.00 ZAR 0.00
Out of stock
SKU
APCS-PN10PB

Pricing available on request

Specifications:

  • Series: L7 Series 200V.
  • Cable type: Power cable.
  • Non-Moving type.
  • Cable length: 10m.
  • Motor Power and Brake Cables - 1.2 - 3.5kW 180 / 220 Frame 200V FF / FG motors.
  • Motor side connector: Plug spec MS3108A24-10S (MS).
  • Drive side connector:
    • U, V, W Pin spec: F2512.
    • Cable spec: 4C x 2.5SQ or 4C x 14AWG.
    • FG Pin spec: 2.5 x 4 (Ring terminal).
  • Brake power side connector: BK Pin spec 1.5 x 3 (Ring terminal).
  • Cable spec: 2C x 0.75S or 2C x 18AWG.

More Information
SKU APCS-PN10PB
Brand LS Electric
