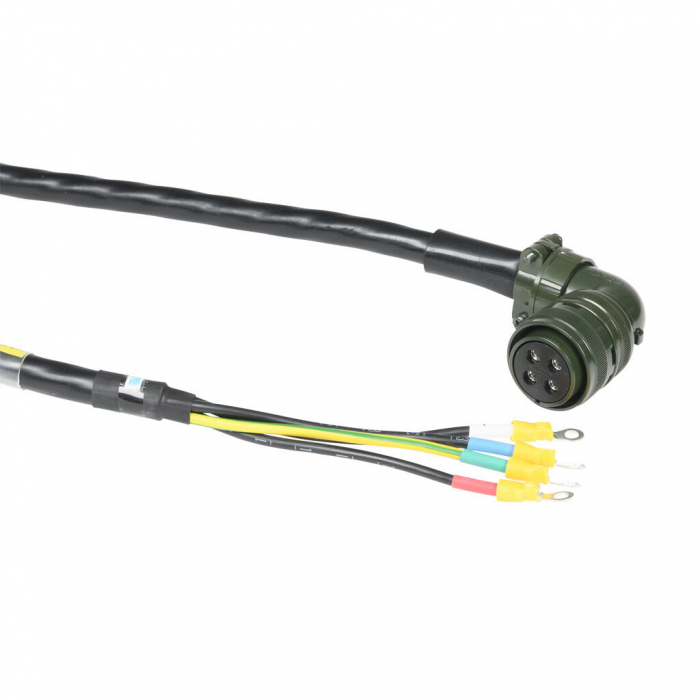

10m Robotic Power and Brake Cable 200V APM- FF & FG Motors 180 / 220 Frame Mil-spec Plug

ZAR 6,378.00
Out of stock
SKU
APCS-PF10PB

Specifications:

  • Series: L7 Series 200V.
  • Cable type: Power cable.
  • Moving type.
  • Cable length: 10m
  • Motor Power and Brake Cables - 1.2 - 3.5kW 180 / 220 Frame 200V FF / FG motors.

Motor side connector:

  • Plug spec: MS3108A24-10S (MS).

Drive side connector:

  • U, V, W Pin spec: F2512.
  • Cable spec: 4C x 2.5SQ or 4C x 14AWG.
  • FG Pin spec: 2.5 x 4 (Ring terminal).

Brake power side connector:

  • BK Pin spec: 1.5 x 3 (Ring terminal).
  • Cable spec: 2C x 0.75S or 2C x 18AWG.
More Information
Brand LS Electric
