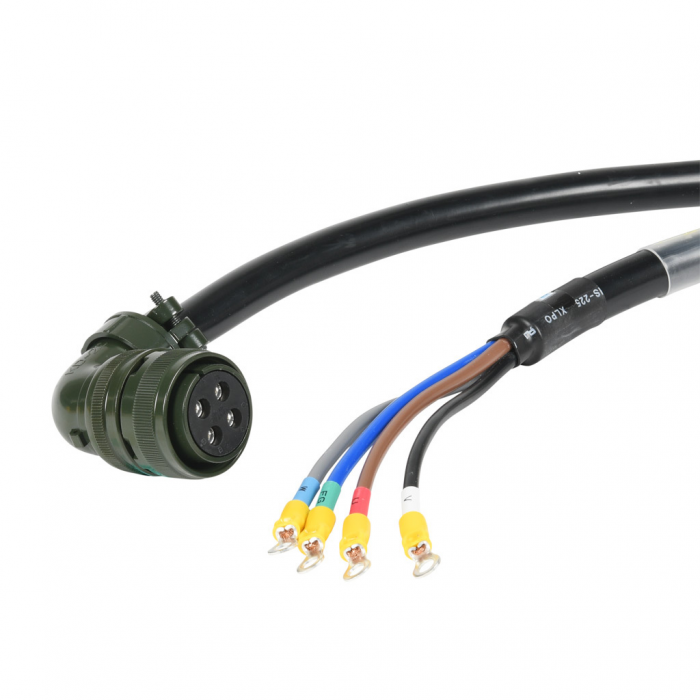

10m Robotic Power large capacity 180/220 Frame SF SG FF FG - 200V motors
Specifications:
- Series: L7 Series 200V.
- Cable type: Power cable.
- Moving type.
- Cable length: 10m
- Motor Power Cables 180/220 Frame 4.4 - 7.5kW S / F 200V motors.
Motor side connector:
- Plug spec: MS3108A22-22S (MS).
Drive side connector:
- Connecting terminal spec: 6.0 x 5 (Ring terminal).
Brake power side connector:
- Connecting terminal spec: 1.5 x 3 (Ring terminal).
- Cable spec: 2C x 0.75SQ or 2C x 18AWG.
| Brand | LS Electric |
|---|
