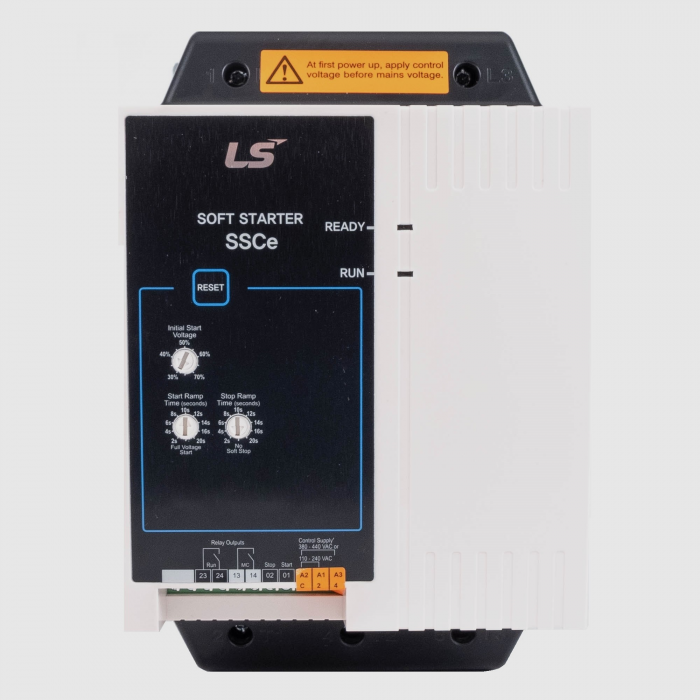

110 kW 200A FLC Basic Economic Type Built-in Bypass 200 - 440VAC Supply 24V
Description:
- A soft starter is a practical and affordable way to ensure the motor runs steadily.
- With LS's vast experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.
Features:
- Ultra compact design (Built-in bypass)
- IEC/UL/KC Standards
- Easy operation & control
- Allows for fast diagnosis of a trip via two LEDs.
- Suitable for mounting in a switchboard.
Specifications:
- Binary inputs: 2
- Relay outputs: 2.
- Depth (mm): 214
- Width (mm): 200
- Height (mm): 240
- Power (kW): 110
- Supply voltage (VAC): 200-440
- 3-phase
- Supply voltage frequency (Hz): 45-66
- Output current (A): 200
- Operating temperature (°C): -10 to 60
- IP protection level: 20
- Economic
- Analogue Ctrl
- 200A FLC
- Built-in Bypass Contactor
- Input Voltage 200 ~ 440Vac
- Control Voltage 24Vac/dc.
- Analogue Settings
- Without Motor Protection
| Brand | LS Electric |
|---|
