KTO 011 Small Compact Thermostat Contact breaker (NC), 0 to +60 °C

ZAR 0.00
Out of stock
SKU
11100.0-00

Pricing available on request

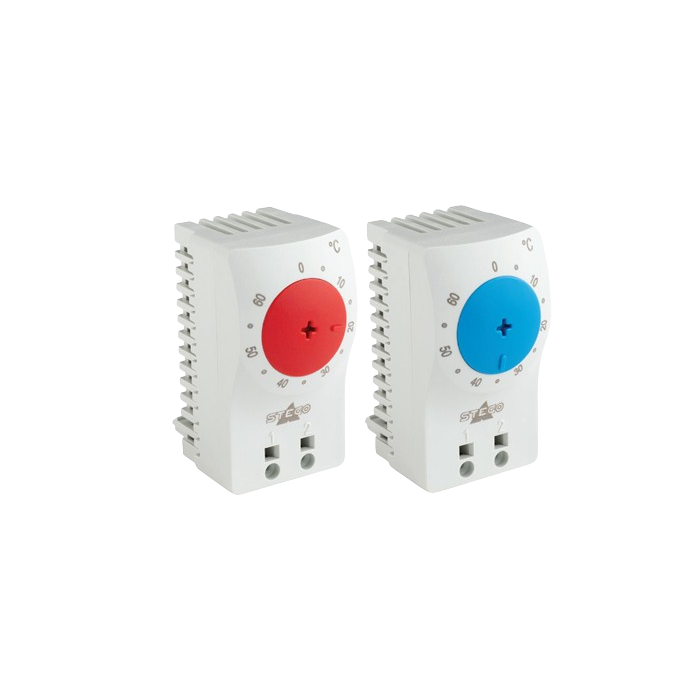

Thermostat KTO 011 Small Compact:

  • The mechanical thermostats KTO 111 and KTS 111 are two-state regulators that can be used at altitudes up to 5,000 meters due to an optimized air gap and increased creepage distance.
  • The thermostat is wired without the need for a tool thanks to Push-In connectors.
  • The Push-In terminals provide continual pressure on the wires to keep them from falling loose (for example, during transportation).
  • KTO 111: Thermostat (NC) with contact breaker for regulating heaters. An increase in temperature causes the contact to open.
  • Safe wiring with Push-In connection terminal.
  • Faster and tool-free wiring.
  • Improved air intakes for ventilation.
  • Easy adjustability of switch temperature setting.
  • for use in up to 5,000 m altitude.

Specifications:

  • Voltage Rating: 250V AC.
  • Current Rating: 10A.
  • Dimensions:
  • Height: 60 mm.
  • Width: 33 mm.
  • Depth: 41 mm.
  • Temperature Range: -45°C to +80°C.
  • Product Range: KTO 111 Series.

Features:

  • Normally Closed (NC) Thermostat: Contact opens when temperature rises.
  • Push-In Connection Terminal: Allows for safe, tool-free wiring.
  • Improved Air Intakes: Enhances ventilation.
  • Adjustable Switch Temperature Setting: Easy to adjust.
  • Altitude Use: Suitable for use up to 5,000 meters.
  • Spring Clamps: Provides constant pressure on wires to prevent them from coming loose.
More Information
Brand Stego
