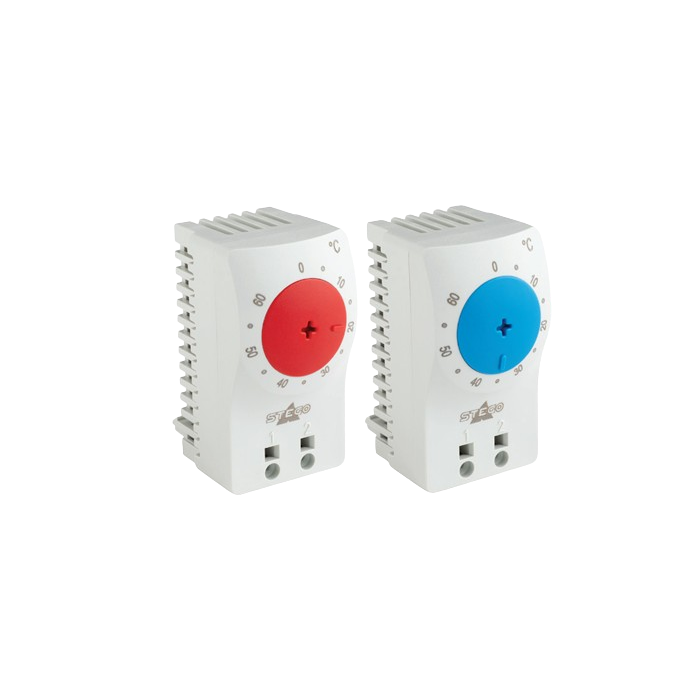

KTO 011 Small Compact Thermostat, Contact breaker (NC), +20 to +80 °C
Pricing available on request
Thermostat KTO 011 Small Compact:
- The mechanical thermostats KTO 111 and KTS 111 are two-state regulators that can be used at altitudes up to 5,000 meters due to an optimized air gap and increased creepage distance.
- The thermostat is wired without the need for a tool thanks to Push-In connectors.
- The Push-In terminals provide continual pressure on the wires to keep them from falling loose (for example, during transportation).
- KTO 111: Thermostat (NC) with contact breaker for regulating heaters. An increase in temperature causes the contact to open.
- Safe wiring with Push-In connection terminal.
- Faster and tool-free wiring.
- Improved air intakes for ventilation.
- Easy adjustability of switch temperature setting.
- for use in up to 5,000 m altitude.
Specifications:
- Voltage Rating: 250V AC.
- Current Rating: 3A.
- Dimensions:
- Height: 60 mm.
- Width: 33 mm.
- Depth: 41 mm.
- Temperature Range: 20°C to 80°C.
- Product Range: KTO 111 Series.
Features:
- Normally Closed (NC) Thermostat: Contact opens when temperature rises.
- Push-In Connection Terminal: Allows for safe, tool-free wiring.
- Optimized Air Gap: Enhances ventilation and increases creepage distance.
- Adjustable Switch Temperature Setting: Easy to adjust.
- Altitude Use: Suitable for use up to 5,000 meters.
- Spring Clamps: Provides constant pressure on wires to prevent them from coming loose.
| Brand | Stego |
|---|
