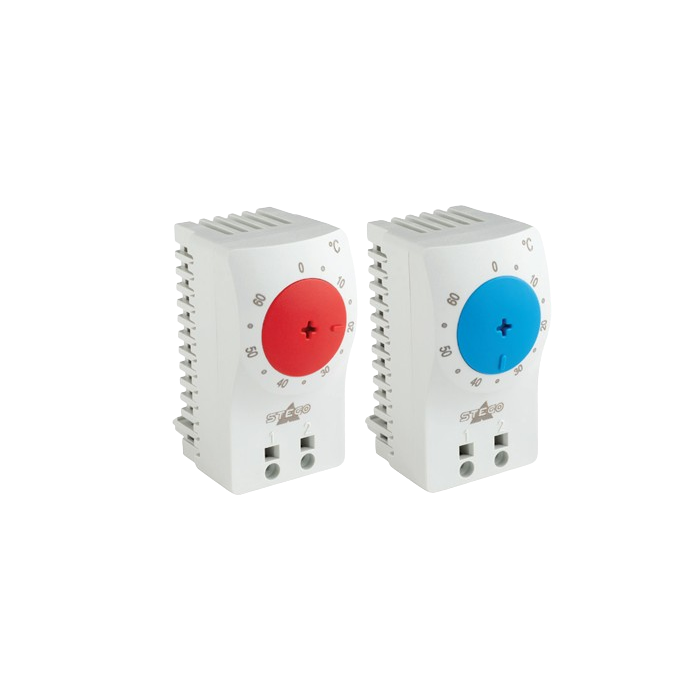

KTO 011 Small Compact Thermostat, Contact breaker (NC), -10 to +50 °C, 250VAC
Pricing available on request
Thermostat KTO 011 Small Compact:
- The mechanical thermostats KTO 111 and KTS 111 are two-state regulators that can be used at altitudes up to 5,000 meters due to an optimized air gap and increased creepage distance.
- The thermostat is wired without the need for a tool thanks to Push-In connectors.
- The Push-In terminals provide continual pressure on the wires to keep them from falling loose (for example, during transportation).
- KTO 111: Thermostat (NC) with contact breaker for regulating heaters. An increase in temperature causes the contact to open.
- Safe wiring with Push-In connection terminal.
- Faster and tool-free wiring.
- Improved air intakes for ventilation.
- Easy adjustability of switch temperature setting.
- for use in up to 5,000 m altitude.
Specifications:
- Temperature Range: -49°F to 176°F (-45°C to 80°C).
- Switch Temperature Difference: 12.6°F (7K).
- Sensor Element: Thermostatic bimetal.
- Contact Type: Normally Closed (NC).
- Service Life: 100,000 cycles.
- Operating Voltage: 250VAC max.
- Frequency Range: 50-60Hz.
- Mounting: 35mm DIN rail, EN 60715.
- Material: Plastic according to UL94 V-0.
- Dimensions: 60mm x 33mm x 41mm.
- Protection Class: IP20 / Class II.
Features:
- Adjustable Thermostat: Allows for precise temperature control.
- Compact Design: Small and space-saving.
- Easy Installation: Mounting clip for quick attachment to DIN rail.
- Durable Construction: High-quality plastic casing.
- Versatile Fitting Position: Can be installed in various orientations.
- Reliable Performance: Verified for 100,000 cycles of operation.
| Brand | Stego |
|---|
