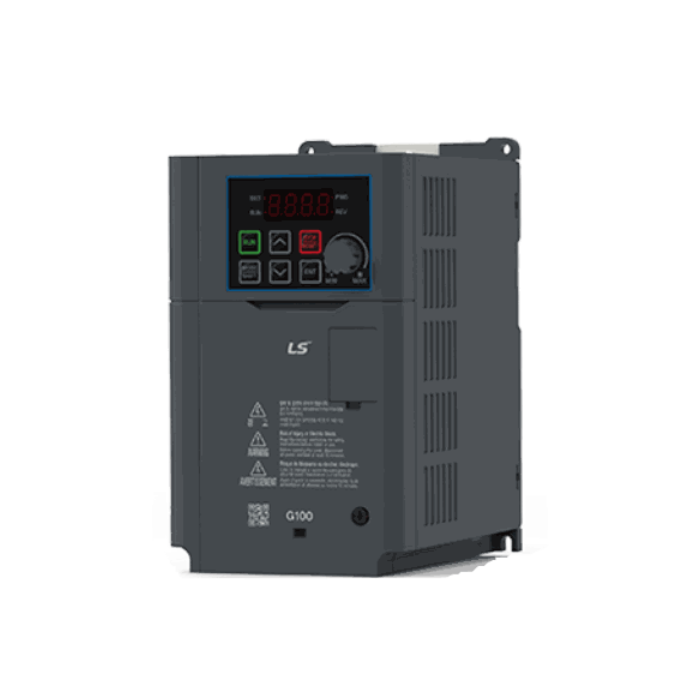

11kW 3 Ph 380V Heavy Duty Built-in C3 filter LED K-Pad pot. brake chopper RS-485
G100 Series:
- The G100 inverter supports both PNP (Source) and NPN (Sink) modes for sequence
- Inputs at the terminal
- Built-in Potentiometer
- Remote Keypad
- Smart Copier
- Fieldbus Options
- Built-in 2 Relay
- DIN rail Mount (Below 4kW)
- Fan Replacement
- I/O Terminal (5mm)
- Operation Group
Specifications:
- Dual rating: 11kW/24A Heavy Duty-150% Overload/1 min 15kW/31A Normal Duty-120% Overload/1 min
- 3 Phase Input 3 Phase Output
- 380-480 Volts
- Control modes: U/f Slip compensation Sensor less vector IM.
- Output frequency: 0.1 - 400 Hz - U/f 0-120 Hz - IM Sensor less
- LED Keypad
- Built-in EMC filter(C3)- Industrial
- BRAKE CHOPER BUILD IN
- PNP / NPN logic
- Standard IO - control terminal I/O 5mm pitch
- Dual motor parameters KEB function
- PID controller
- RS 485 interface-LS Bus / Modbus RTU
- Drive View Software
- Output Power Rating: 11 kW.
- Input Power Rating: 3-Phase, 400 V AC, 50/60 Hz
- Output current, normal load/heavy load: 31A/24A.
- Output voltage: 3 x 400 V AC
- Control method: V/F, Slip Compensation, Sensor less Vector.
- Built-in potentiometer and EMC C3 filter
- User-friendly design: DIN rail installation side by side,
- UL 61800-5-1 (compliant with the latest standards)
- Built-in: Modbus RTU and LS INV 485
- Dimensions: 180 x 290 x 173 mm (W x H x D)
- Weight: 5,04 kg
Brand | LS Electric |
---|
