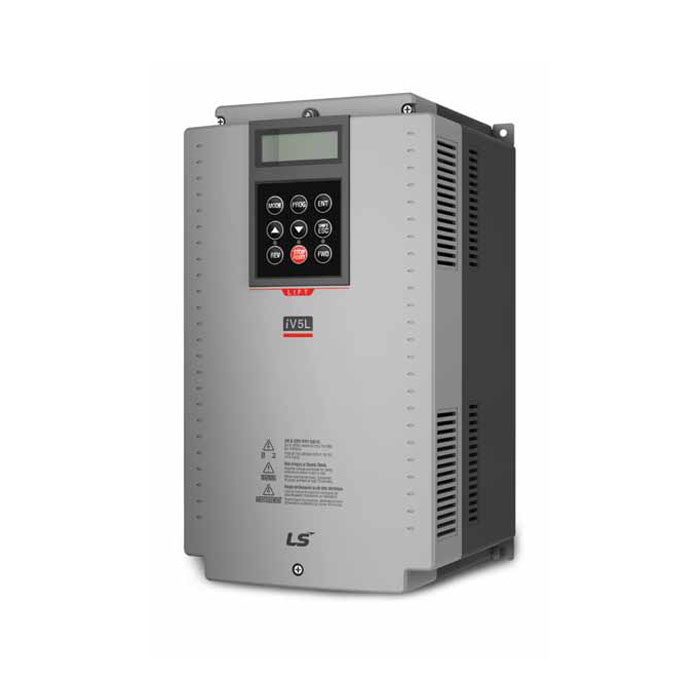

iV5L Series:

• Integrated software for both IM and PM control.
• Safe Torque Off (STO) is built in.
• Auto Torque Boost: Secured performance with open loop control.
• Anti-rollback: When the lift brake opens, this prevents rollback by starting torque compensation via encoder position control.
• The ALLS (Automatic Light Load Search) function enables the lift to operate in a safe direction while putting less load on the battery during an emergency.
• Anti-Hunting Regulation: Under V/F regulation, this regulates current hunting, also known as current distortion or oscillation, which is brought on by mechanical resonance.
• Options for encoders: SIN/COS encoder Endat feedback options are available.
• Default incremental encoder.
• Battery Operation: In the event of a power outage, an emergency motor can run on externally installed batteries.
• Battery operation allows for the adjustment of both speed and battery input voltage.
• Trip/Warning function: capable of monitoring errors using trip and warning settings.
