12 x 24V DC In 8 x NPN Out PS2/USB loader 1 Ch ea RS-232 and RS-485 HSC
Description:

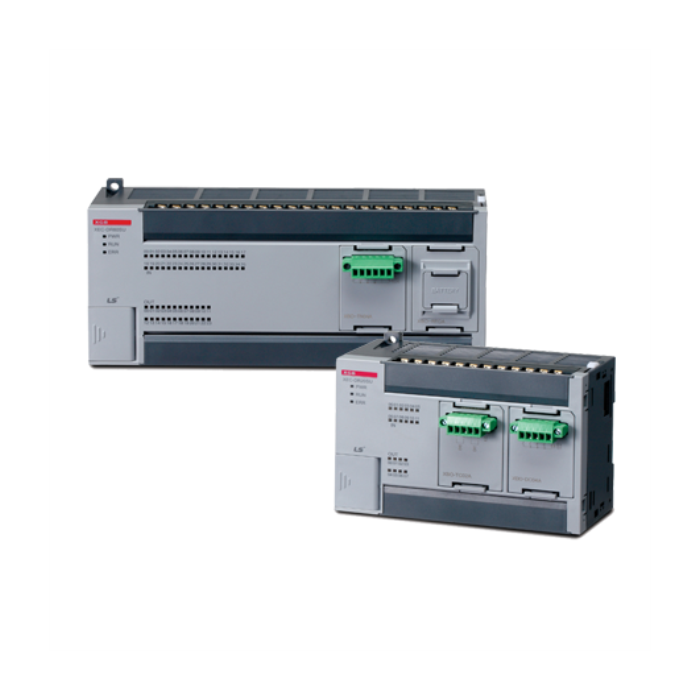

- LS Electric XGB Series PLC, XBC Standard SU-Type Unit, Expandable (Max. 244 pts) I/O, Expansion Power Provision 1240mA, 110/240VAC Input Power, 12 24VDC Inputs, 8 Transistor Outputs, 0.5A/Point, 2A/COM, 4 COM, 3 Option Slots.
Features:
- Flexible Connectivity using up to 7 Expansion Modules
- 2 Option Modules capability for Expansion
- 2 Programming Ports (Mini-DIN & USB Mini-B)
- 2 Peripheral Ports (RS232 & RS485)
- Powerful Performance, Fast Processing Speed (0.09µs/step)
- Built-in Functions: RS-232C/485 (2-ch), High-Speed Counter, PID Control, PuLS Electrise Catch, Input Filter, External Interrupt, Positioning
- Agency Approvals LS Electric: UL / cUL / CE
- Rated Voltage: AC 100 ∽ 240 V
- Input Voltage Range: AC85∽ 264V (-15%, +10%)
- Inrush current: 50APeak or less
- Input current: 0.5A or less (220V), 1A or less (110V)
- Efficiency: 65%
- Rated Output: 1.5A @ DC5V; 0.3A @ DC24V
Specifications:
- Operation Voltage: 20.4–28.8VDC (Within Ripple Rate 5%)
- Rated Input Voltage: 24VDC
- Rated Input Current: 4mA (Contact Point 0–1: 16mA, 2–7: 10mA)
- Input Resistance: 5.6kΩ (P00–P07: 2.7kΩ)
- Weight: 475gr
- Current Consumption: 452mA
- Supply voltage: 100~240VAC.
- Output Type: Digital Transistor (NPN DC 12/24V)
- Programming Language: LD IL
- Digital Input/Output: 12 Inputs, 8 Outputs
- Expansion: 7 modules (expansion + option) 2 modules (communication)
- Input Type Digital DC 24V (NPN/PNP)
- Communication Port: 2*RS-232C/RS-485 Program Upload RS-232C USB
- Fast Counter: 1 Phase: 8 Channels (100Kpps*2 20Kpps*6 DC 24V) 2 Phase: 4 Channels (50Kpps*1 8Kpps*3 DC 24V)
- Transaction Speed: 94ns/Step
- PID Control: 16 Cycles
- Program Memory: 15Kstep/200KB.
- Total Number of I/O: 244
- Product Category: Compact PLC (XGB)
- Product Type: CPU
- XBC-SU Standard PLC (Master-K), Max 7 Exp Cards, 2x Option Mod
- Master-K PLC, 100-240V AC, USB, 90 n/s Step, Max 7 Exp. Cards & 2x XBO Options, HSC, Pos
| Brand | LS Electric |
|---|
