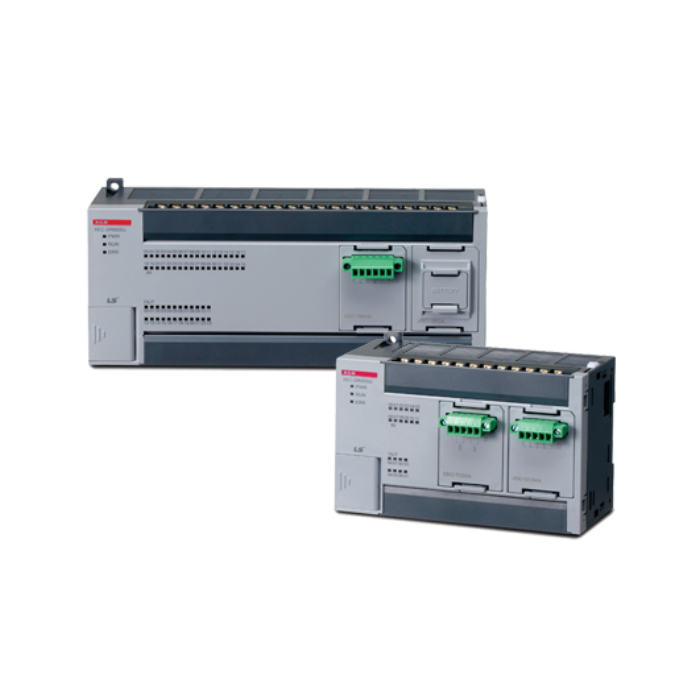

XBC Standard Type Unit, 12 x 24V DC In 8 x Rly Out PS2/USB loader
Description:
- It is a simple compact type with a variety of functions required for basic control. The expansion option module allows for space optimization.
- It facilitates the simple implementation of numerous projects by supporting a variety of networks and unique modules.
Input specifications:
- Input point: 12.
- Rated input voltage: DC 24V
- Rated input current: 4mA (contact point 0~1: 16mA, 2~7: 10mA)
- Operation voltage range: DC 20.4 ~28.8V (Ripple rate <5%)
- On voltage/ On current: DC 19V or more/ 3mA or more
- Off voltage/ Off current: DC 6V or less/1mA or less
- Input resistance: 5.6K Ω (P00~P07: 2.7KΩ)
Transistor output Specifications:
- Output point: 8.
- Insulation method: Photo-coupler
- Rated load voltage: DC 12/24V
- Load voltage range: DC 10.2~26.4V
- Max. load voltage: 0.5A/1 point, 2A/ 1COM.
- Off leakage current: 0.1 mA or less
- Max. inrush current: 4A/10ms or less
- Max. voltage drop (on): DC 0.4V or less.
- Surges absorb: Zener diode.
- Response time: off-on: DC 12/24V ±10% (Ripple voltage 4 Vp-p or less), on-off: 25mA or less (DC 24V connection)
Relay output specifications:
- Output point: 8.
- Insulation method: Relay insulation
- Rated load voltage/current: DC 24V 2A/AC 220V 2A, 5A/COM
- Min. load voltage/current: DC 5V/1Ma
- Max. load current: AC 250V, DC 125V
- Off leakage current: 0.1Ma (AC 220V, 60Hz)
- Response time: off-on: 10ms or less, on-off: 12ms or less
| Brand | LS Electric |
|---|
