Block Type Unit (Economic), AC 100-240V, 12 pts DC input , 8 pts relay output
Description:

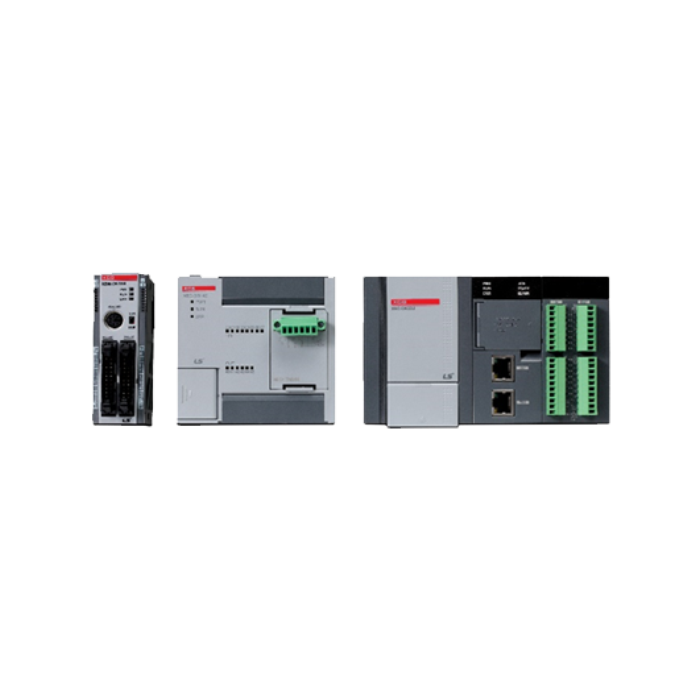

- A powerful and adaptable programmable logic controller (PLC) for a range of industrial automation applications is the LS Electric XBC-DR20E.
- With its 12 digital inputs and 8 relay outputs, this little machine offers plenty of connectivity for control applications.
- It is compatible with common industrial power systems because it runs on an AC110/220V power source.
- With a program capacity of 4,000 steps and high-speed processing support of 240ns per step, the XBC-DR20E is well-suited for intricate automation applications.
- It may be easily integrated with other systems and devices because to its integrated RS-232C and RS-485 communication connectors.
- To further increase its versatility and scalability, the unit can be expanded with up to two additional modules.
Specifications:
- Supply Voltage: 100-240V AC.
- Program capacity: 15k steps.
- Relay Output Rating: 2A Resistive.
- Max. I/O points: 384
- Analogue, Input-, Output Resolution: 14-Bit
- PID Control
- High Speed Inputs
- Positioning
- Size: 100 x 64 x 90 mm
- Program control method: Reiterative operation fixed cycle operation constant scan.
- I/O control method: Scan synchronous batch processing method (Refresh method) Directed by program instruction.
- Processing speed: 0.24 ㎲/Step
- DC input: 12 points
- Relay output: 8 points.
- Rated voltage: AC110V~220V
- Internal current consumption: 350mA
- Weight: 450g
- XBC Non-IEC (Master-K Type) PLCs, E / SU / H and XBM Versions
- XBC-E Economic PLC (Master-K), 100-240V AC, 240 n/s Step, XBO Expansion Options Only
Key benefits:
- Compact
- Cost-effective
- LADDER and IEC-1131 programmable.
- From 38 to 284 I/O points
- From 94 ns/step to 240 ns/step
- From 4 to 200 Ksteps
| Brand | LS Electric |
|---|
