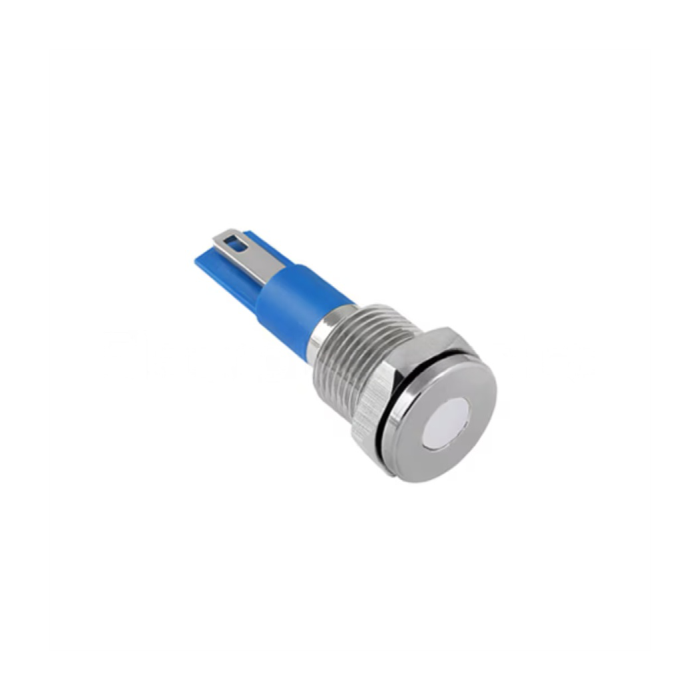

12mm METALLIC WHITE LED PILOT LIGHT 24VAC/DC
Metallic panel-mounted LED pilot lights:
Features:
- Compact design and space-saving.
- Compact design saves space.
- Long life, high strength, and low maintenance.
- Installing sizes available: Ø10,12, and 16 mm.
- 12V/DC and 24V/DC are the two available voltages.
- Red, Green, Yellow, Blue, and White are the five illumination colours.
Specifications:
- COLOUR: White
- VOLTAGE: 24 VAC/DC
- MOUNTING HOLE: Ø 12mm
- DESCRIPTION: Panel mount metallic LED pilot light
- LAMP TYPE: LED D Dot
- INDEX PROTECTION IP: IP67
- TERMINAL TYPE: Solder / push-on 2.8 x 0.5mm
- BODY MATERIAL: Nickel-plated brass
- OPERATING TEMPERATURE: -25 ~ +55℃
- PANEL THICKNESS: 1 ~ 6mm
Applications:
- Industrial equipment.
- Equipment used in industry.
- Panels for instrument control.
- Dashboards used in transportation.
- Gas, oil, and maritime sectors.
- Outdoor uses and safety.
- Slot machines, table games, and snack bars.
| Brand | ElectroMechanica |
|---|
