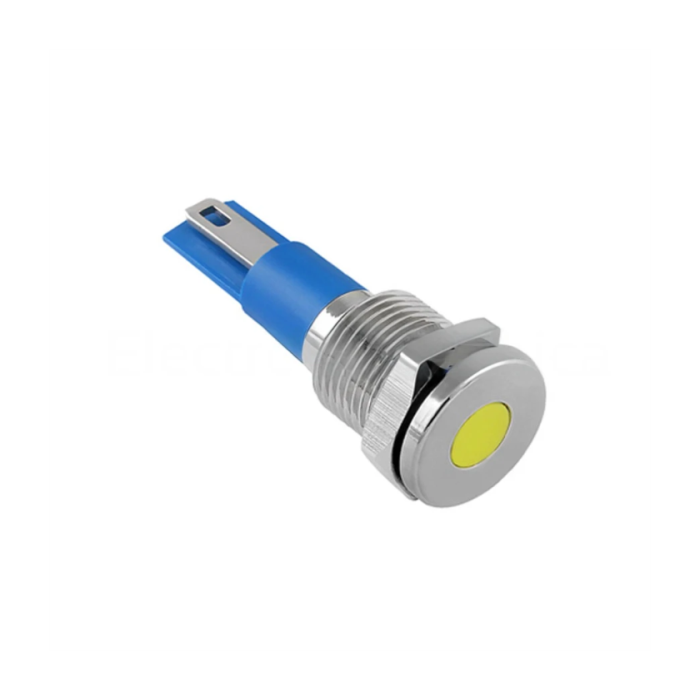

12mm METALLIC YELLOW LED PILOT LIGHT 24VAC/DC
Panel-mountable metallic LED pilot lights:
Features:
- Compact design maximizes space.
- Compact design saves space.
- Robust, long-lasting, and little maintenance.
- Ø10,12, and 16 mm are the mounting sizes that are available.
- There are two voltage options: 12 VAC/DC and 24 VAC/DC.
- There are five colours of illumination: red, green, yellow, blue, and white.
Applications:
- Heavy machinery.
- Equipment used in industry.
- Instrument control panels.
- Dashboards used in transportation.
- The gas, oil, and maritime sectors.
- Security and outdoor use.
- Vending, slots, and games.
Specifications:
- COLOUR: Yellow
- VOLTAGE: 24 VAC/DC
- MOUNTING HOLE: Ø 12mm
- DESCRIPTION: Panel mount metallic LED pilot light
- LAMP TYPE: LED D Dot
- INDEX PROTECTION IP: IP67
- TERMINAL TYPE: Solder / push-on 2.8 x 0.5mm
- BODY MATERIAL: Nickel-plated brass
- OPERATING TEMPERATURE: -25 ~ +55℃
- PANEL THICKNESS: 1 ~ 6mm
Brand | ElectroMechanica |
---|
