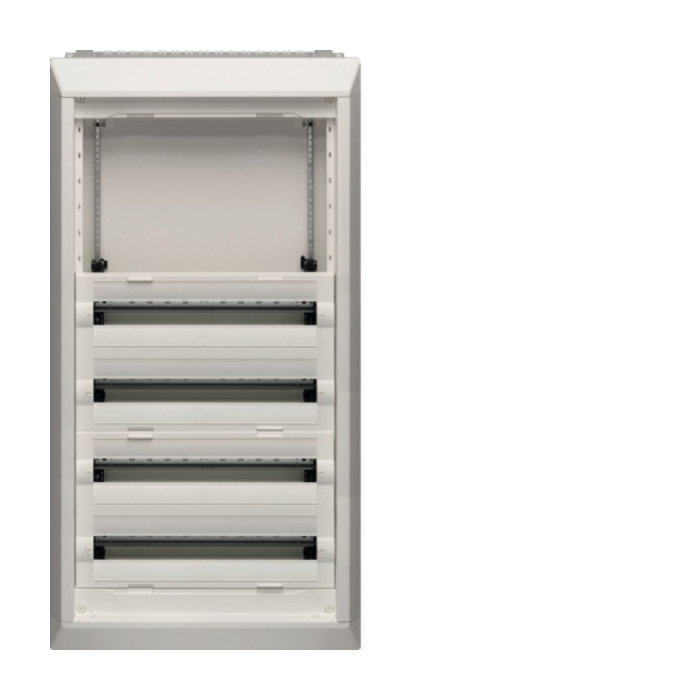

144 WAY FLUSH MOUNTING DISTRIBUTION BOARD 2x EMPTY ROWS
Distribution boards for surface and flush mounting from the Vega D series (IP41 with doors installed):
- Installing Vega D enclosures for supply up to 250A is appropriate for both residential and commercial structures.
- Supplied in an assembly-ready state.
- There are 24 module rows in each enclosure.
Features:
- Enclosure for metallic surface mounting.
- Quick-connect earth connections that are integrated.
- Front frame that can be removed for best access to installed internal devices.
- Doors made of sheet metal (without a window or with one) must be purchased individually.
Boards for flush mounting:
- Modular gadgets are accommodated by a removable chassis featuring uprights.
- Metallic finishing frame with DN=40 / AN=72 mm depth that is easily removable.
- Metal flush mounting tray with shielded cable entrances at the top and bottom, 110 mm in depth.
- provided without the upper two rows. to be finished with the chosen internal modules.
- to take a chassis plate, two-row modular devices, or main switch MCCB (up to 250A).
Specifications:
-
NO OF MODULAR WAYS: 144 (6 x 24) IN THE Vega D SERIES
- DESCRIPTION: Index Protection Surface Mounting Distribution Board IP: class II fully insulated, IP30/IK07 (doorless) - IP41/IK08 (doored).
- COLOR: Pale Gray RAL9010
- DIMENSIONS (MM): (H) 1137 x (W) 550 x (D) 182
| Brand | :hager |
|---|
