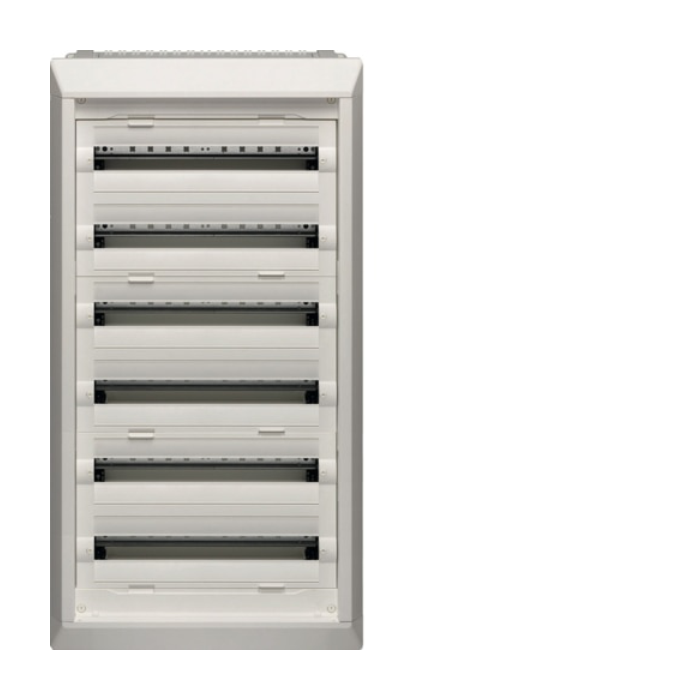

144 WAY FLUSH MOUNTING VEGA-D DISTRIBUTION BOARD
Distribution boards for surface and flush mounting from the Vega D series (IP41 with doors installed):
- Installing Vega D enclosures for supply up to 250A is appropriate for both residential and commercial structures.
- Supplied in an assembly-ready state.
- There are 24 module rows in each enclosure.
Features:
- Enclosure for metallic surface mounting.
- Quick-connect earth connections that are integrated.
- Front frame that can be removed for best access to installed internal devices.
- Doors made of sheet metal (without a window or with one) must be purchased individually.
Boards for flush mounting:
- Modular gadgets are accommodated by a removable chassis featuring uprights.
- Metal flush mounting tray with shielded cable entrances at the top and bottom, 110 mm in depth.
Specifications:
- NO OF MODULAR WAYS: 144 (6 x 24) IN THE Vega D SERIES.
- DESCRIPTION: Index Protection Surface Mounting
- Distribution Board IP: class II fully insulated, IP30/IK07 (doorless) - IP41/IK08 (doored).
- COLOUR: Pale Gray 9010 RAL
- DIMENSIONS (MM): (H) 1137 x (W) 550 x (D) 150
| Brand | :hager |
|---|
