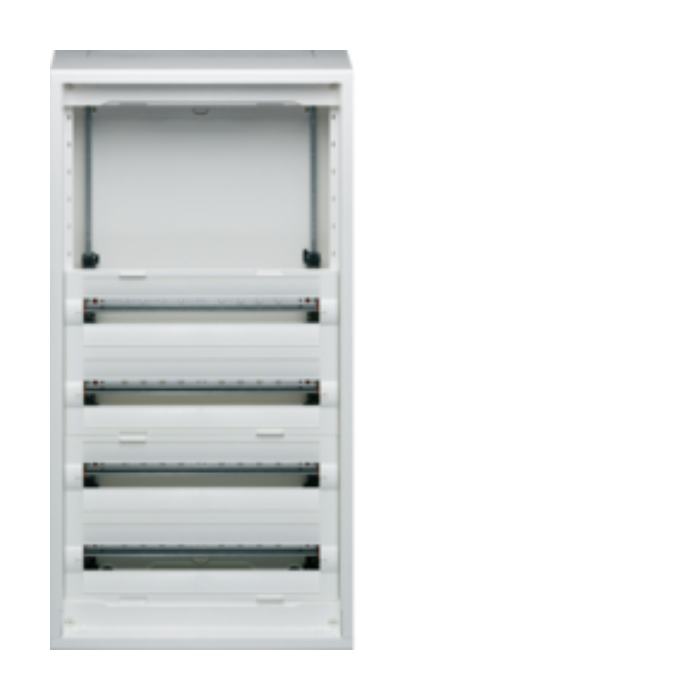

144 WAY SURFACE MOUNTING DISTRIBUTION BOARD 2x EMPTY ROWS
Description:
- The New VegaD series of surface-mounted distribution boards, including the Hager FD62AN, is made to offer dependable and well-organized solutions for electrical installations.
- This enclosure provides a reliable and effective method of managing electrical circuits and is appropriate for both home and commercial applications.
- Durable performance and safety are guaranteed by the FD62AN's premium build and user-friendly design.
- Because it can hold up to 144 modules, it is perfect for intricate electrical configurations.
Specifications:
- Product Code: FD62AN.
- EAN: 3250612548361.
- Compatibility: Hager VegaD enclosures.
- Material: Plastic/metal with powder-coated surface treatment.
- Colour: Pure white (RAL 9010).
- Installation: Surface mounting.
- Dimensions:
- Depth: 193 mm.
- Height: 1050 mm.
- Width: 550 mm.
- Width in Division Units: 24.
- Number of Modules: 144.
- Number of Rows: 6.
- Quantity of Rails: 4.
- Main Electrical Features:
- Nominal Voltage: 230/400 V.
- Rated Current: 160 A.
- Cover and Door:
- Cover Type: With notch.
- Door Locking: Without.
- Transparent Cover or Door: No.
- Connection:
- Number of Conduit Inlets: 4.
- Number of Openings for Flange Plates: 2.
- Compliance:
- REACH Conform: No.
- RoHS Conform: Yes.
- Halogen Free: No.
- Protection Index:
- IP30/IK07 (without door).
- IP41/IK08 (with door).
- Packaging: 1 piece per package.
| Brand | :hager |
|---|
