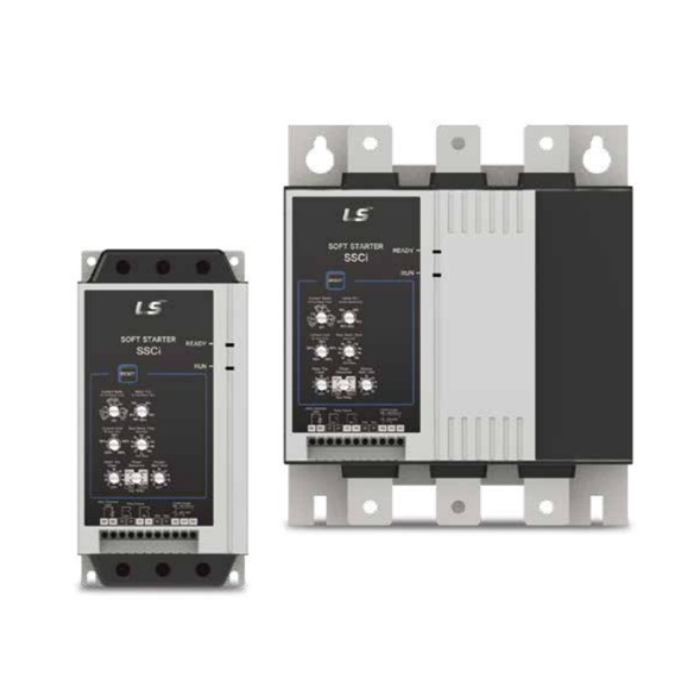

15 kW 34A FLC Basic Type Motor Protection Bypass 200-440VAC Supply 110-440V
Description:
- A soft starter may provide steady motor performance and is a cost-effective and efficient solution.
- With LS's broad knowledge and expertise, we offer a solution to improve operational effectiveness while reducing energy costs.
Features:
- Ultra compact design (Built-in bypass)
- IEC/UL/KC Standards
- Built-in motor protection
- Allows for fast diagnosis of a trip via two LEDs.
- Simple panel configuration & cost-saving
- Easy operation & control
Specifications:
- Power: Normal duty: 15 kW 34A 400 VAC, Heavy Duty: 15 kW 30A 400 VAC.
- Main voltage: 110~240 VAC (+10/-15%) or 380~440 VAC (+10/-15%)
- Rated Output Current: 34 A
- Control Voltage: 110~240 VAC (+10%/-15%)
- Start current: 4 x Inom.
- Start time: 1-20s (Adjustable)
- Operating temperature: -10°C to +60°C
- Built-in bypass
- With Motor Protection
- AC53b 4-6:594
- <1000m 40℃
- Size: 98 x 201 x 165 mm (W x H x D)
- Weight: 2.1 kg
- IP20
| Brand | LS Electric |
|---|
