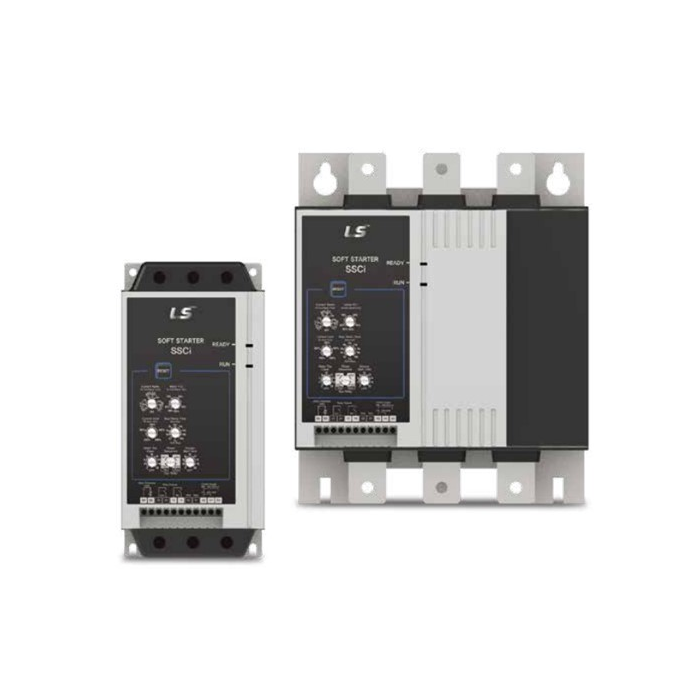

15 kW 34A FLC Basic Type Motor Protection Bypass 200 - 575VAC 200 - 440V
Description:
- A soft starter is a practical and affordable way to ensure the motor runs steadily.
- With LS's vast experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.
Features:
- Ultra compact design (Built-in bypass)
- IEC/UL/KC Standards
- Built-in motor protection
- Allows for fast diagnosis of a trip via two LEDs.
- Simple panel configuration & cost-saving
- Easy operation & control
Specifications:
- Rated current: 34 A
- Input voltage: 200 - 575 VAC.
- Protection class: IP20, 15 kW,
- Installation height: <1000 m
- Dimensions (H x W x D): 201 x 98 x 165 mm
- Weight: 2.2kg
- 15kW Soft Starter
- Standard
- Analog Ctrl
- 34A FLC
- Built-in Bypass Contactor
- Control Voltage 110 ~ 240 & 380 ~ 440Vac
- Analog Settings
- With Motor Protection
| Brand | LS Electric |
|---|
