15kW 3-Ph 380VAC Heavy Duty DC Reactor EMC DBU RS-485

ZAR 33,477.00
Out of stock
SKU
SV0150IS7-4NOFD

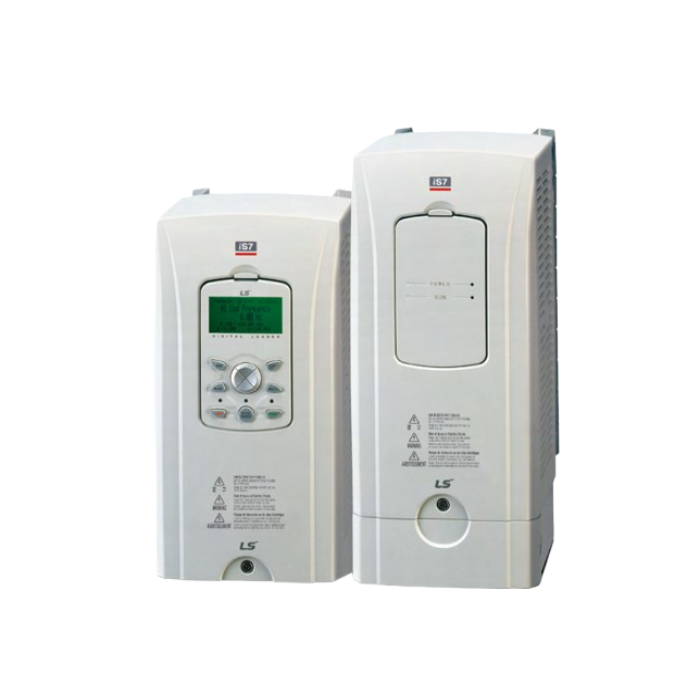

iS7 Series:

  • With its improved V/F control, V/F PG slip compensation, and sensor-less vector control, the iS7 produces more effective performance.
  • The iS7 places a strong emphasis on its user-friendly interface and environmentally friendly features, which include support for macro groups and wide graphic LCD keypad users, as well as electro-thermal motor protection and input/output phase loss protection.
  • A speed-precision-driven vector algorithm and a competitive and strong low-speed torque control are features of iS7 technology.
  • Range of speed control: 100:1.
  • Very low torque control capability: actual torque of 150% at 0.1 Hz.
  • Maximum torque control capacity inside the range of restoration

Specifications:

  • Supply voltage: 3 Phase 380VAC.
  • Output Type: Analogue DC 0~10V.
  • Output Type: Analogue DC 4~20mA.
  • Output Type: Digital Programmable Relay (NO)
  • Output Type: Digital Programmable Relay (NO/NC)
  • Output Type: Digital Programmable Transistor
  • Other Feature: Thermistor Input
  • Other Feature: Built-in EMC Filter
  • Display Type: LCD
  • Input Type: 8 Pieces Prog. PNP/NPN
  • Input Type: Analogue DC ±10V.
  • Input Type: Analogue DC 4~20mA /0~20mA.
  • Strength: 15 kW
  • Power: normal duty: 18.5 kW; heavy duty: 15 kW
  • Voltage Input: 3 phase 380 - 480V at (-15% to +10%) 50 - 60 Hz (±5%)
  • Voltage Output: 3 phase 380 - 480V
  • Rated Output Current: 39 A normal duty / 30 A heavy duty
  • Overload capacity: 150% / 1 minute; 200% for 2 seconds at High Overload rating.
  • Output Frequency: 0 – 400 Hz
  • Build-in EMC Filter
  • Operating temperature: -10 °C to +40 °
  • Protection class: IP20
More Information
Brand LS Electric
