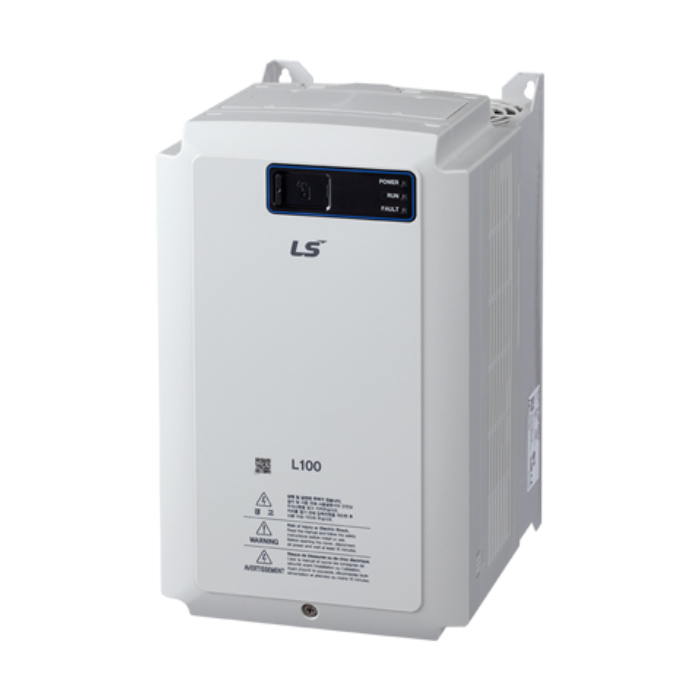

15kW 3-Ph 380VAC High Spec Elevator Drive IM/PM Motors, Encoder Options
Description:
- For lifting applications, the L100 series LS frequency inverter is the best option.
- Best-in-class performance is provided by the LS Electric L100 series, which is optimized for load lifting and elevators.
- The L100 offers vital features and options with size-optimized solutions for these applications, significantly increasing customer value.
- Using a 3D design method and heat dissipation analysis, size was decreased in addition to improving performance.
Specifications:
- Capacity: 15 kW.
- Current: 30 A.
- Main power supply: 380-480 V.
- Analog input: 2.
- Analog output: 2.
- Operation temperature: -10 to +40°C.
- Heavy Duty: 150% / 1min. 200% / 4 sec.
- 3 Phase Input 3 Phase Output 380 ~ 480V (-15% ~ +10%).
- Output frequency: 0-120 Hz.
- V/F 0-120 Hz.
- Slip compensation 0-120 Hz.
- Sensor Vector (IM. PM).
- Built-in CAN open RS 485.
- Safety: EN ISO 13849-1 PLd EN 61508 SIL2 (EN60204-1 Cat 0).
- Built-in EMC Filter C2 (Class B).
- Degree of protection: IP00.
- Dimension: (W) 180 x (H) 290 x (D).
| SKU | LV0150L100-4NNFN |
|---|---|
| Brand | LS Electric |
