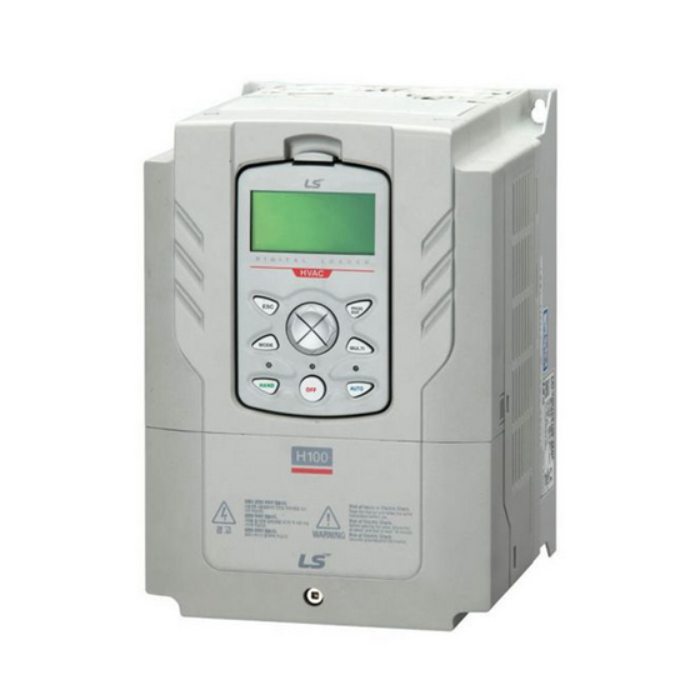

H100 Fan And Pump Drive 15kW 3-Ph 380VAC Specialized HVAC Funct. RTC RS-485 (BACnet)
Description:
- The LS Electrical H100 Fan and Pump Drive series is designed for high-performance and energy-efficient operation in HVAC and water treatment systems.
- These drives support three-phase input voltages of 200-240V and 380-480V, with power ratings ranging from 0.75kW to 500kW.
- The H100 series features a user-friendly keypad, built-in EMC filter, and multiple communication options including Modbus-RTU and BACnet MS/TP.
- It also offers advanced functions such as fire mode, multi-motor control, and energy-saving capabilities.
- The compact design allows for side-by-side installation, making it ideal for space-constrained environments.
- With its robust performance and reliability, the H100 series is a versatile solution for various fan and pump applications.
Specifications:
- Series: H100
- Input Range VAC: 380 to 480 Volts AC
- Input Phase: 3
- HP: 20 Horsepower
- Amps: 30 Amps
- Operator Controls: Built In
- Mounting: DIN Rail
- Input Range Voltage (AC): 380-480 VAC
- IP Rating: IP20
| Brand | LS Electric |
|---|
