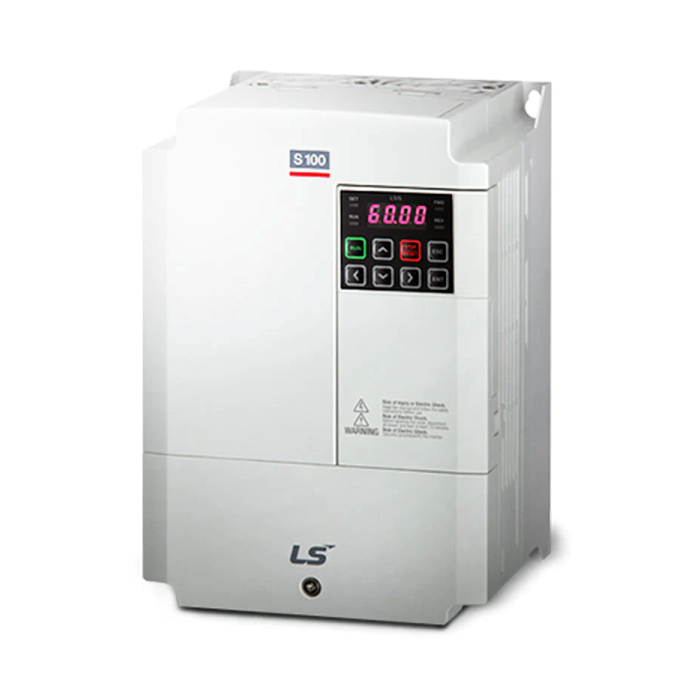

S100 Standard Drive 15kW 3 Phase 380VAC Heavy Duty Dual-Rated DBU C3 EMC Filter Multi I/O
Description:
- High-performance standard drives like the LS Electrical S100 series are made for a variety of industrial uses.
- With sensor-less vector control, it provides excellent motor control and can achieve a starting torque of more than 200% at 0.5 Hz.
- The S100 series is adaptable to a range of power needs since it can handle single-phase (0.4-2.2kW) and three-phase (0.4-75kW) input voltages.
- It improves safety and dependability with integrated DC reactors, Safe Torque Off inputs, and EMC filters.
- To provide a smooth integration into current systems, the S100 series also includes energy-saving algorithms, side-by-side installation capability, and compliance with open field networks like Profibus-DP, CANopen, and EtherNet.
Specifications:
- Output Power Rating: 15 / 18,5 kW.
- Input Power Rating: 3-Phase, 400 V AC, 50/60 Hz
- Output current: 30,0 A/ 38,0 A
- Output voltage: 3 x 400 V AC
- Output frequency: 0,1...400 Hz (0-300 Hz for vector control)
- Control mode: V/F control, Sensor less vector control.
- Supply voltage: 3 Phase 380VAC.
- Output Type: Analogue DC 0~10V /4~20mA /0~20mA.
- Output Type: Digital Programmable Transistor
- Output Type: Digital Programmable Relay (NO/NC)
- Other Feature: Built-in EMC Filter
- Other Feature: Internal Braking Unit
- Display Type: LED
- Input Type: 7 Pieces Prog. PNP/NPN
- Input Type: Analogue DC 0~10V /4~20mA /0~20mA.
- Input Type: Analogue DC 0~10V.
- Strength: 15 kW
| Brand | LS Electric |
|---|
