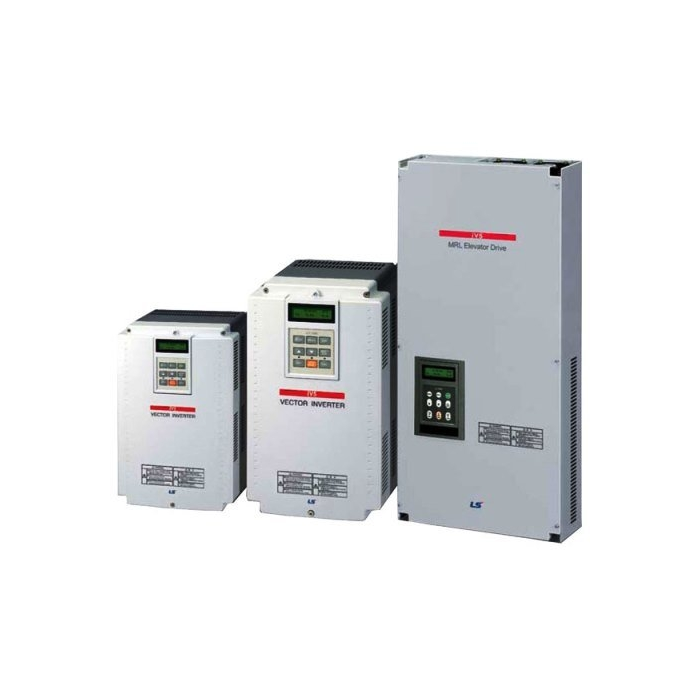

15kW MRL AC380-460V 3 Phase Built-in Dynamic braking unit
iV5 Series:
- The series achieves excellent control stability in the crane continuous line and elevator system controls due to its very precise speed control and high-precision vector control across the whole operating area.
- Accurate torque and speed control Precise management using the SIN/COS encoder PM Control without sensors Autotuning (when stationary) Process/Droop/Draw PID Control of the brakes.
- With its user-friendly keypad and detachable terminal blocks, it is simple to use.
- Numerous communication protocols, including Profibus-DP CC-Link, Device Net Profibus-RTU, and LS485 Modbus-RTU.
Specifications:
- Power: 15 kW
- Voltage Input: 3 phase 380 - 480V AC (-15% to +10%) 50 - 60 Hz (±5%)
- Voltage Output: 3 phase 380 - 480V
- Rated Output Current: 30 A
- Overload capacity: 150% / 1 minute.
- Output Frequency: 0 – 400 Hz
- Operating temperature: -10 °C to +40 °
- Protection class: IP20
- 0~3600rpm
- Built-in Dynamic braking transistor.
- Encoder (PG) Feedback for 5/12/15V
Specifications of iV5 MRL Series:
- The maximum allowable capacity is marked when using a standard 4-pole motor. (200V Class is based on 220V and 400V Class on 440V.)
- The rated capacity (=√3*V*I) is 220V for 200V Class and 440V for 400V Class.
- Output Rated Voltage (V): 380~480V. The maximum output voltage does not exceed the source voltage.
- Input Rated Voltage (V): 3ؘ 380~480V (-10%~+10%). When the input voltage is 507~528V 10% derating of the rated current should be performed.
- When the input voltage is 680VDC or above 10% derating of the rated current should be performed.
| Brand | LS Electric |
|---|
