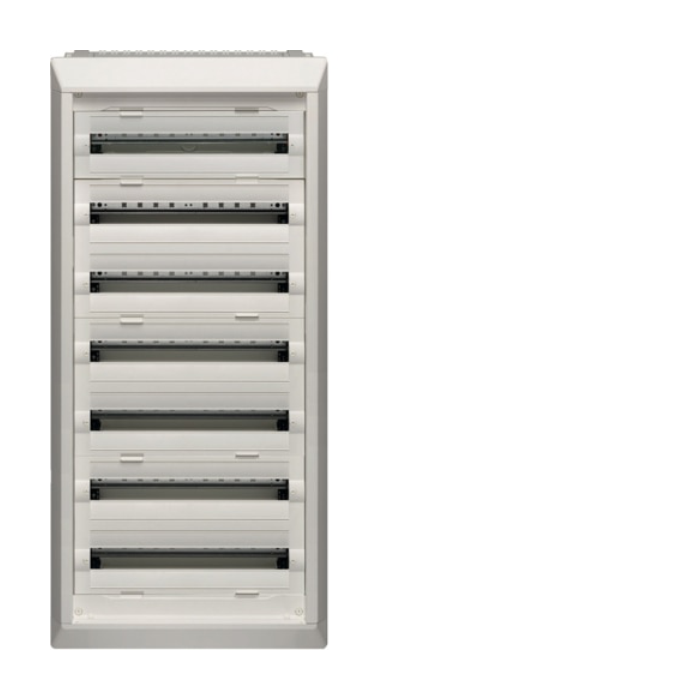

168 WAY FLUSH MOUNTING VEGA-D DISTRIBUTION BOARD
Distribution boards for surface and flush mounting from the Vega D series (IP41 when doors are installed):
- Installing Vega D enclosures for supply up to 250A is appropriate for both residential and commercial structures.
- Supplied in an assembly-ready state.
- There are 24 module rows in each enclosure.
Features:
- Surface-mounting enclosure made of metal.
- Quick-connect earth terminals that are integrated.
- Front frame is detachable for best access to fitted internal electronics.
- Sheet metal doors (without a window or with one) must be purchased separately.
Boards for flush mounting:
- Removable upright-equipped chassis that supports modular devices.
- Metallic flush mounting tray with shielded cable entrances at the top and bottom, 110 mm in depth.
- SERIES: Vega D
- NO OF MODULAR WAYS: 168 (7 x 24)
- DESCRIPTION: Surface mounting distribution board.
- INDEX PROTECTION IP: IP30/IK07 (without door) - IP41/IK08 (with door) - class II totally insulated.
- COLOUR: Light Grey RAL 9010.
- DIMENSIONS (MM): (H) 1287 x (W) 550 x (D) 150.
| Brand | :hager |
|---|
