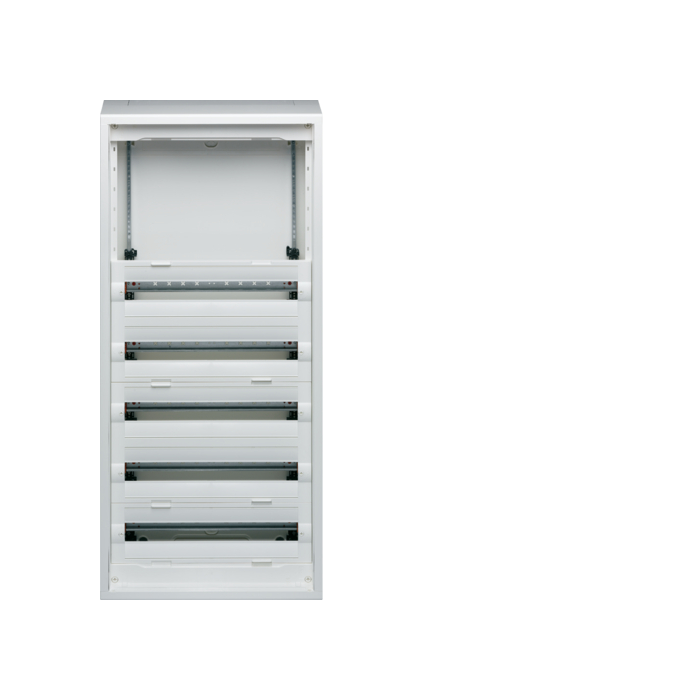

168 WAY SURFACE MOUNTING DISTRIBUTION BOARD 2x EMPTY ROWS
Surface-mounting boards:
Removable top and bottom plates for easier cable entry Supplied without top two rows.
To be completed with internal modules of choice to accept main switch MCCB (up to 250A) or two rows modular devices or chassis plate.
- SERIES: Vega D
- NO OF MODULAR WAYS: 168 (7 x 24)
- DESCRIPTION: Surface mounting distribution board
- INDEX PROTECTION IP: IP30/IK07 (without door) - IP41/IK08 (with door) - class II totally insulated.
- COLOUR: Light grey RAL 9010
- DIMENSIONS (MM): (H) 1200 x (W) 550 x (D) 193
Distribution boards for surface and flush mounting in the Vega D series (IP41 when doors are installed):
Installing Vega D enclosures for supply up to 250A is appropriate for both residential and commercial structures.
Supplied in an assembly-ready state.
There are 24 module rows in each enclosure.
- Enclosure for metallic surface mounting.
- Quick-connect earth connections that are integrated.
- Front frame that can be removed for best access to installed internal devices.
- Doors made of sheet metal (without a window or with one) must be purchased individually.
| Brand | :hager |
|---|
