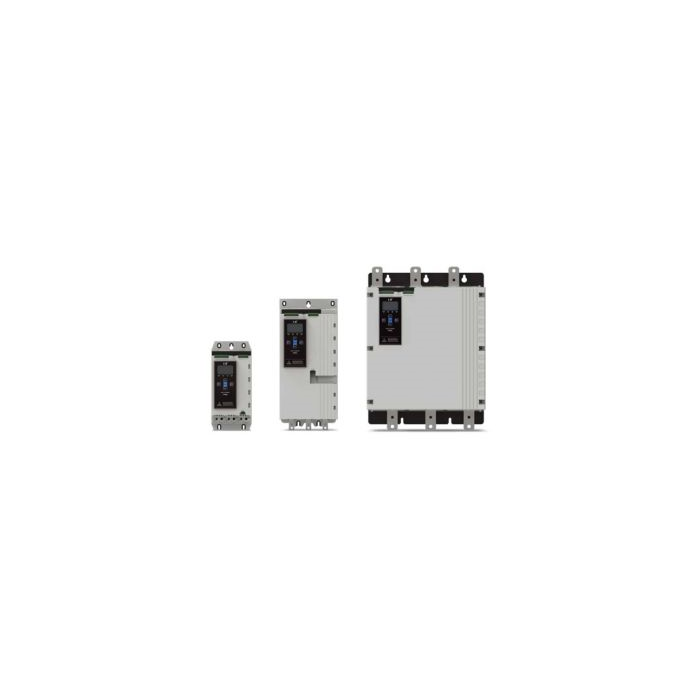

18.5 kW 34A FLC Standard Economic-Type 380 - 690 Vac Supply 24V Control Bypass Keypad
Description:
- A soft starter is a practical and affordable way to ensure the motor runs steadily.
- With LS's extensive experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.
Features:
- Easy Operation and Control
- Motor Protection
- Built-in bypass
- Compact Design, Easy to integrate.
- Timed Voltage Ramp System
- Convenient Status and Trip Check with LED Indicator
Specifications:
- Main voltage: 380~690VAC (± 10%).
- Control voltage: 24VAC/VDC (±20%), 2.8A.
- Main frequency: 50~60Hz (±5Hz).
- Rated insulation voltage to earth: 600VAC.
- Rated impulse withstand voltage: 6KV.
- From designation: Bypassed or continuous, semiconductor motor starter form 1.
- Short circuit capability: coordination with semiconductor fuses (Type 2), Coordination with HRC fuses (Type 1).
- EMC immunity: IEC 60947-4-2.
- EMC emissions: NIEC 60947-4-2 class B.
- Input Rating: Active 24 VDC, 8mA approximately.
- Relay outputs: 10A at 250VAC Resistive, 5A at 250VAC AC15 pf 0.3.
- Relay output: Changeover.
SSM Series:
- Zero Harmonics on Smart Cards
- System Protection: Power Through minimizes on-site downtime while allowing for continued operation in emergency scenarios.
- Both still have the greatest capacity for protection and control.
- Design with the System's Total Efficiency in Mind: Choosing the right motor control mode is just as crucial as using energy-efficient components.
- It is more effective to use a soft starter rather than a VFD when operating at a fixed speed.
- Effective Function: SSM Soft Starters operate at 99.5% efficiency when powered by an internal bypass.
- Graphical Display
- Simple commissioning through fast application setup
- Support for eight languages, including English, Portuguese, Chinese, French, Spanish, Italian, German, and Russian, is multilingual.
- Six network connections make for a strong network connection. Modbus TCP/PROFINET/Ethernet IP/Profibus/Device Net/Modbus RTU
- Automated Schedulers and Timers: Quick and easy automation that does not require timers or additional logic.
- Simulation Mode: No need to connect the main power supply and motor; easy and fast testing during installation and commissioning.
Brand | LS Electric |
---|
