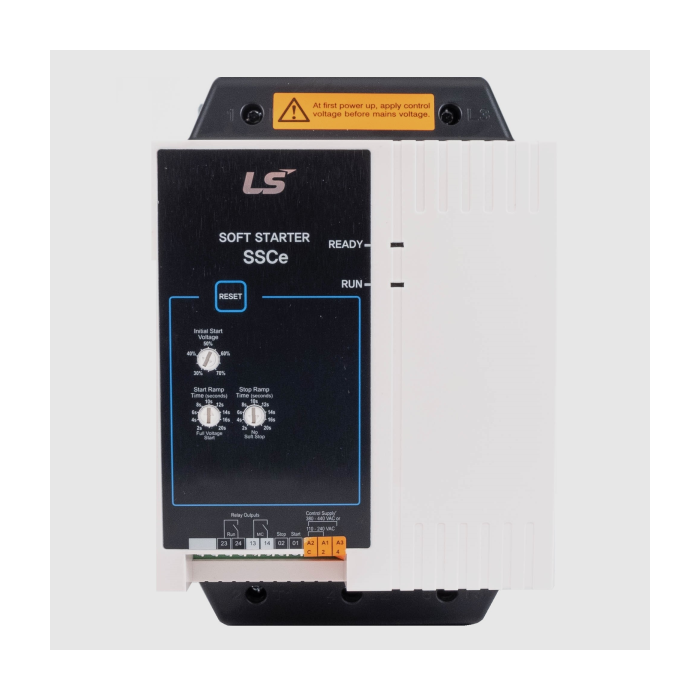

18.5 kW 42A FLC Basic Economic Built-in Bypass 200 - 440VAC Supply 110-440V

ZAR 11,339.00
Out of stock
SKU
SSCe-042-V4-C1 42A

Description:

  • A soft starter may provide steady motor performance and is a cost-effective and efficient solution.
  • With LS's broad knowledge and expertise, we offer a solution to improve operational effectiveness while reducing energy costs.

Features:

  • Ultra compact design (Built-in bypass)
  • IEC/UL/KC Standards
  • Easy operation & control
  • Allows for fast diagnosis of a trip via two LEDs.
  • Suitable for mounting in a switchboard.

Specifications:

  • Power: Normal duty: 18,5 kW 42A 400 VAC, Heavy Duty: 18,5 kW 36A 400 VAC.
  • Main voltage: 110~240 VAC (+10/-15%) or 380~440 VAC (+10/-15%)
  • Rated Output Current: 42 A
  • Control Voltage: 110~240 VAC (+10%/-15%)
  • Start current: 4 x Inom.
  • Start time: 1-20s (Adjustable)
  • Operating temperature: -10°C to +60°C
  • Built-in bypass
  • Without Motor Protection
  • AC53b 4-6:594
  • <1000m 40°C
  • Size: 98 x 201 x 165 mm (W x H x D)
  • Weight: 2.1 kg
  • IP20
More Information
Brand LS Electric
