Features:

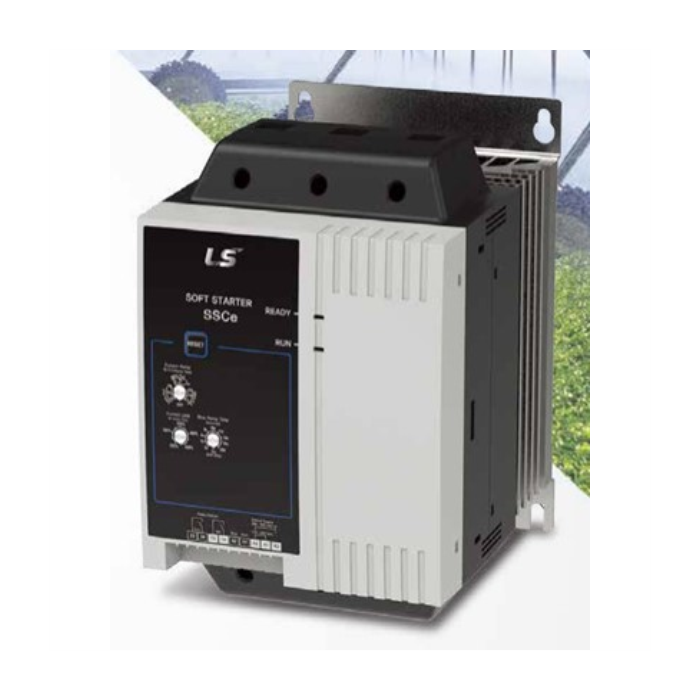

• LS soft starter with a 200–440 VAC three-phase power supply.
• 11 kW at 230 VAC, 18 kW at 400 VAC, and 30 kW at 500 VAC are the power of the soft starter.
• The device has a rated current of 42A ND/36A HD.
• The system runs on 24 V AC/DC power.
• There is no need to install an external contactor because the device has a built-in bypass.
• There is a timed voltage ramp feature on this soft starter.
• There is two-phase control for the SSCe LS soft starter.
• Featuring 2 relay outputs and 2 digital inputs.
• SSCe soft starter efficiency, according to the manufacturer, is 99.5%.
• Additionally, with higher motor efficiency comes lower energy costs and improved soft start/stop performance with LG SSCe soft starter systems.
• The device is intended for attachment to a mounting plate or DIN rail.
• SSCe LG can also be installed in a landscape setup.
• The housing is IP20-protected and made from plastic.
• The SSCe LS 42 A soft starter is 201 x 98 x 165 mm.
• It weighs 2.2 kg.
