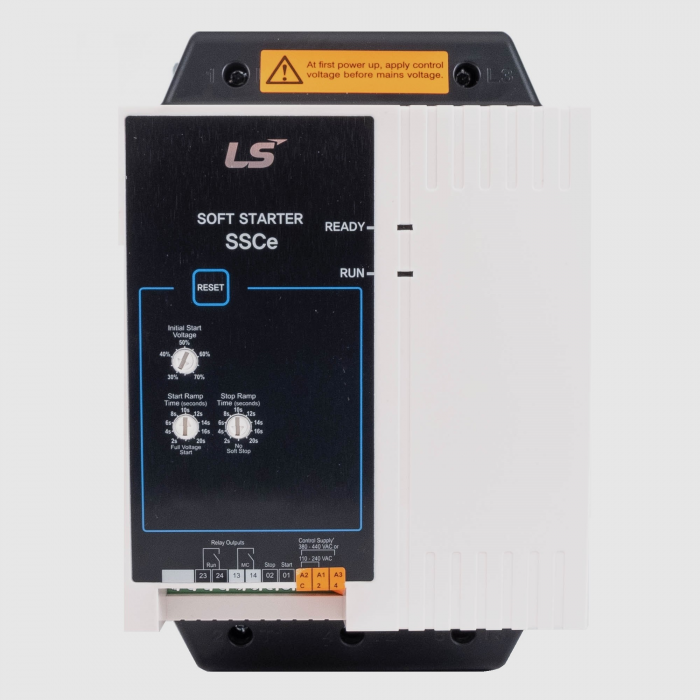

18.5 kW 42A FLC Basic Economic Type Built-in Bypass 200 - 575VAC Supply 24V

ZAR 11,595.00
Out of stock
SKU
SSCe-042-V6-C2 42A

Description:

  • A soft starter is a practical and affordable way to ensure the motor runs steadily.
  • With LS's vast experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.

Features:

  • Ultra compact design (Built-in bypass)
  • IEC/UL/KC Standards
  • Easy operation & control
  • Allows for fast diagnosis of a trip via two LEDs.
  • Suitable for mounting in a switchboard.

Specifications:

  • Binary inputs: 2
  • Relay outputs: 2.
  • Depth (mm): 165
  • Width (mm): 98
  • Height (mm): 201
  • Power (kW): 18
  • Supply voltage (VAC): 200-575
  • 3-phase
  • Supply voltage frequency (Hz): 45-66
  • Output current (A): 42
  • Operating temperature (°C): -10 to 60
  • IP protection level: 20
  • 18.5kW Soft Starter
  • Economic
  • Analog Ctrl
  • 42A FLC
  • Built-in Bypass Contactor
  • Control Voltage 24Vac/dc.
  • Analog Settings
  • Without Motor Protection
More Information
Brand LS Electric
