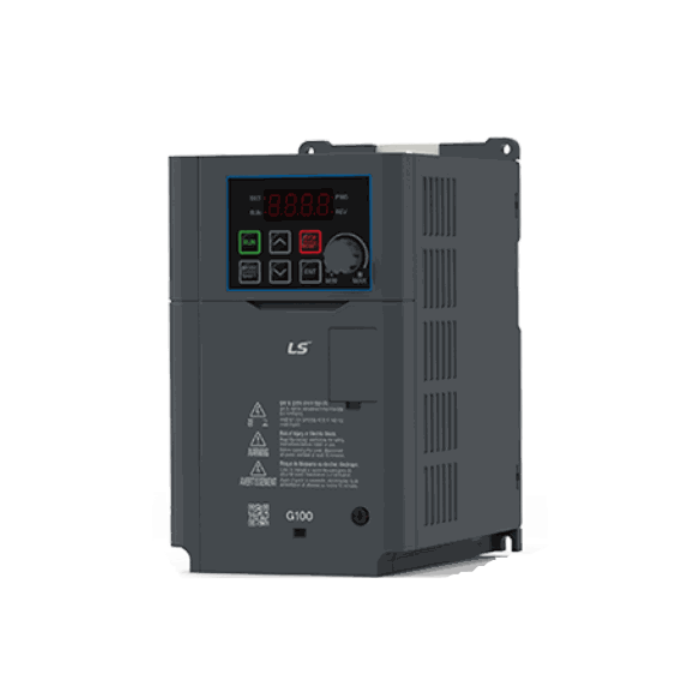

G100 General Drive 18.5kW 3 Ph 380V Heavy Duty Built-in C3 filter LED K-Pad pot. brake chopper RS-485
Description:
- The LS Electrical G100/G100C General AC Drive series provides strong and dependable motor control solutions and is intended for high-performance industrial applications.
- These drives have power ratings ranging from 0.4kW to 22kW (equal to 1/2 to 30HP), and they handle three-phase input voltages of 200-240V and 380-480V.
- The G100C model offers improved performance and user-friendly features, while the G100 series boasts sensor-less vector control, which offers accurate and effective motor management.
- Both models meet UL 61800-5-1 requirements and are constructed with a MIL217Plus-based design for enhanced dependability and durability.
- With options for DIN rail mounting and Modbus connection for a smooth integration into current systems, the drives also provide simple installation and maintenance.
Specifications:
- Dual rating: 18.5kW/39A Heavy Duty-150% Overload/1 min 22kW/45A Normal Duty-120% Overload/1 min
- 3 Phase Input 3 Phase Output
- 380-480 Volts
- Control modes: U/f Slip compensation Sensor less vector IM.
- Output frequency: 0.1 - 400 Hz - U/f 0-120 Hz - IM Sensor less.
- LED Keypad
- Built-in EMC filter(C3)- Industrial
- BRAKE CHOPER BUILD IN
- PNP / NPN logic
- Standard IO - control terminal I/O 5mm pitch
- Dual motor parameters KEB function
- PID controller
- RS 485 interface-LS Bus / Modbus RTU
- Drive View Software
- Output Power Rating: 18,5 kW.
- Input Power Rating: 3-Phase, 400 V AC, 50/60 Hz
- Output current, normal load/heavy load: 45A/39A.
- Output voltage: 3 x 400 V AC
- Control method: V/F, Slip Compensation, Sensor less Vector.
- Built-in potentiometer and EMC C3 filter
- User-friendly design: DIN rail installation side by side, UL 61800-5-1 (compliant with the latest standards)
- Built-in: Modbus RTU and LS INV 485
- Dimensions: 220 x 345 x 187 mm (W x H x D)
- Weight: 7,96 kg
| Brand | LS Electric |
|---|
