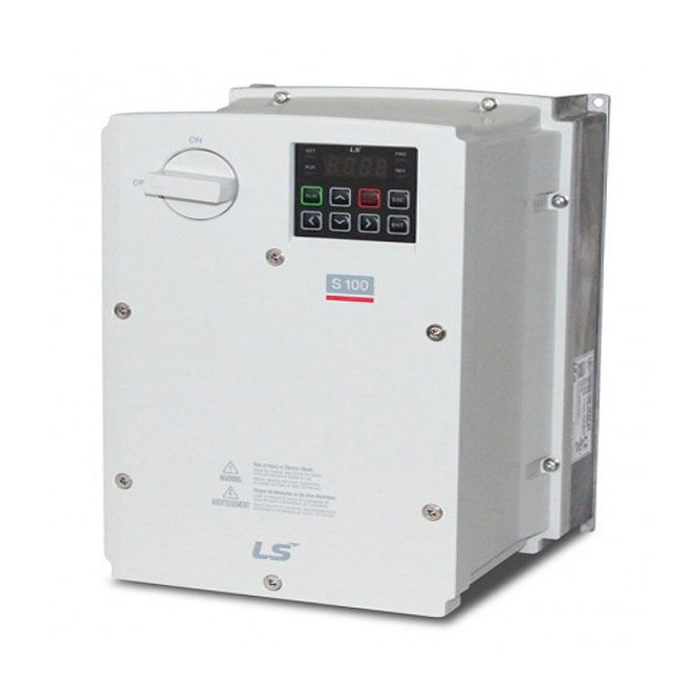

S100 Standard Drive 18.5kW 3-Ph 380VAC IP-66 Built-in C3 EMC filter DBU RS-485 LED Keypad Multi I/O
Description:
- High-performance standard drives like the LS Electrical S100 series are made for a variety of industrial uses.
- With sensor-less vector control, it provides excellent motor control and can achieve a starting torque of more than 200% at 0.5 Hz.
- The S100 series is adaptable to a range of power needs since it can handle single-phase (0.4-2.2kW) and three-phase (0.4-75kW) input voltages.
- It improves safety and dependability with integrated DC reactors, Safe Torque Off inputs, and EMC filters.
- To provide a smooth integration into current systems, the S100 series also includes energy-saving algorithms, side-by-side installation capability, and compliance with open field networks like Profibus-DP, CANopen, and EtherNet.
Specifications:
- 18.5kW /39A Heavy Duty-150% Overload/1 min
- 3 Phase Input, 3 Phase Output
- 380-480 Volts
- Control modes: U/f sensor less vector IM PM motor control.
- Output frequency: 0.1 - 400 Hz - U/f 0-120 Hz - IM Sensor less.
- LED Keypad
- Built-in EMC filter(C3)- Industrial
- BRAKE CHOPPER BUILD IN
- PNP / NPN logic
- Standard IO - control terminal I/O 5mm pitch
- Dual motor parameters
- PID controller
- RS 485 interface-LS Bus / Modbus RTU
- Drive View Software
- Input Voltage Range: 380V - 480V.
- Power Rating: 18.5kW
| Brand | LS Electric |
|---|
