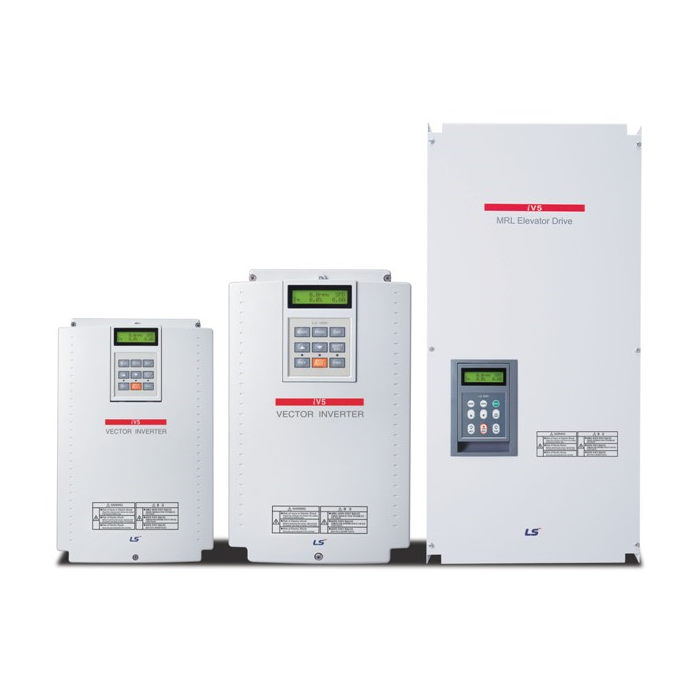

18.5kW AC380-460V3 Ph Vector Drive Molded Case DBU Built-in 5/12/15V Encoder card

ZAR 44,392.00
Out of stock
SKU
SV185iV5-4DB

iV5L Series:

  • This series achieves extremely fine vector control throughout the operational region, and its exceptionally precise speed control ensures excellent control stability in the controls of the elevator system and crane continuous line.
  • Precise torque and speed control Precise management using the SIN/COS encoder PM Control without sensors Autotuning (when stationary) Process/Droop/Draw PID Control of the brakes.
  • With its user-friendly keypad and detachable terminal blocks, it is simple to use.
  • Numerous communication protocols, including Profibus-DP CC-Link, Device Net Profibus-RTU, and LS485 Modbus-RTU.

Specifications:

  • Power: 18.5 Kw
  • Voltage Input: 3 phase 380 - 480V AC (-15% to +10%) 50 - 60 Hz (±5%)
  • Voltage Output: 3 phase 380 - 480V
  • Rated Output Current: 39 A
  • Overload capacity: 150% / 1 minute.
  • Output Frequency: 0 – 400 Hz
  • Operating temperature: -10 °C to +40 °
  • Protection class: IP20
  • High duty full flux vector control VFD LS iV5 Series
  • 0~3600rpm
  • Built-in Dynamic braking transistor
  • Encoder (PG) Feedback for 5/12/15V
More Information
Brand LS Electric
