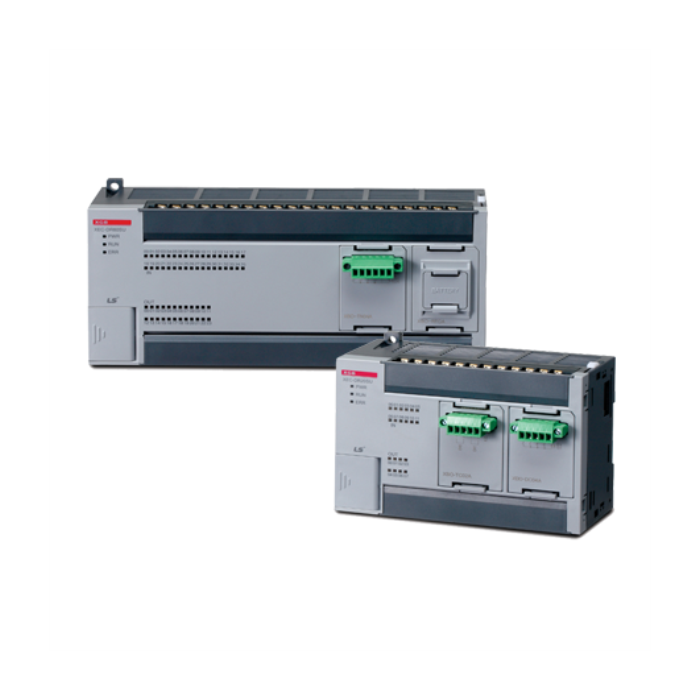

XBC Standard Unit, SU-Type 30 (18 Input, 12 output I/O Points)
Description:
- Improved user interface with XG-PD and XG5000
- Several types of monitoring.
- Monitoring and diagnostics of networks.
- Strong communication: integrated RS-232C/485, two communication expansions, Ethernet, and Cnet I/F network configuration.
Specifications:
- Relay output Rating: 2A Resistive.
- Weight: 476gr
- Current Consumption: 310mA
- Supply voltage: 100~240VAC.
- Output Type: Digital Transistor (NPN, DC 12/24V)
- Programming Language: LD IL
- Digital Input/Output: 18 Inputs 12 Outputs
- Expansion: 7 modules (expansion + option) 2 modules (communication)
- Input Type: Digital DC 24V (NPN/PNP)
- Communication Port: 2*RS-232C/RS-485 Program Upload RS-232C USB
- Fast Counter: 1 Phase: 8 Channels (100Kpps*2 20Kpps*6 DC 24V) 2 Phase: 4 Channels (50 Kpps*1 8Kpps*3 DC 24V)
- Transaction Speed: 94ns/Step
- PID Control: 16 Cycles
- Program Memory: 15Kstep/200KB.
- Total Number of I/O: 254
- Product Category: Compact PLC (XGB)
- Product Type: CPU
- Size: 135 x 64 x 90 mm
- XBC-SU Standard PLC (Master-K), Max 7 Exp Cards, 2x Option Mod
- Master-K PLC, 100-240V AC, USB, 90 n/s Step, Max 7 Exp. Cards & 2x XBO Options, HSC, Pos
| Brand | LS Electric |
|---|
